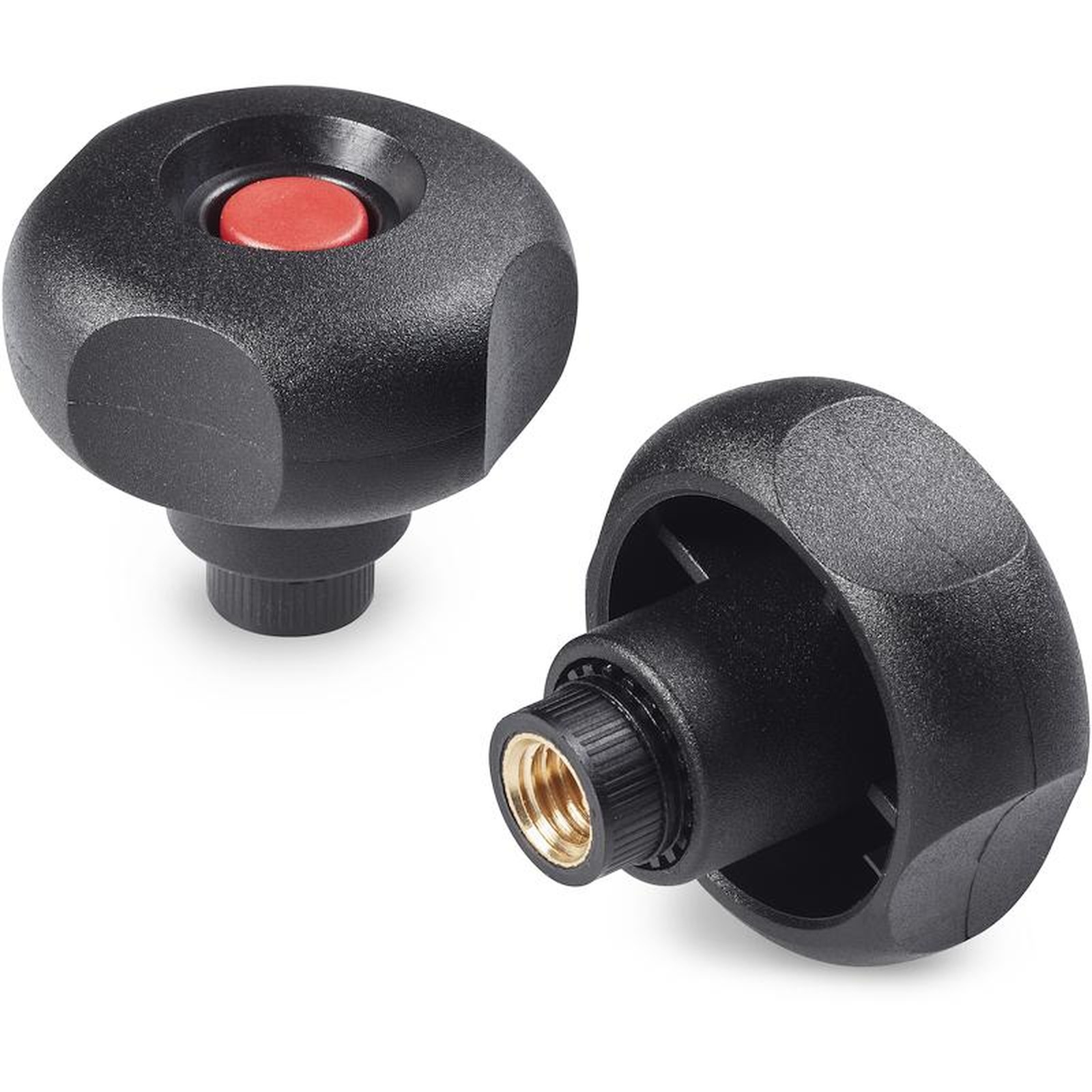

4 LOBE HANDWHEEL WITH INDEXED INSERT (PUSH TO USE) AND THREADED INSERT
07
G630
Volantini a 4 lobi
Materials:
(3-4) Special high resistance glass fiber reinforced technopolymer.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
(3-4)Black.(RAL 9011).
Central fixing button:
(1) Red polyamide button (RAL 3000 code 16).
Alternative handwheel and button colour:
Orange(RAL 2004 code 02).
Blue(RAL 5015 code 07).
Yellow(RAL 1021 code 10).
Red(RAL 3000 code 16).
Green(RAL 6024 code 17).
Grey(RAL 7035 cod. 13).
Black(RAL 9001 code 01).
Inserts:
Brass insert with female threaded hole (thread tolerance 6H).
Spring:
Stainless steel spring (Aisi 302).
Special requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart.

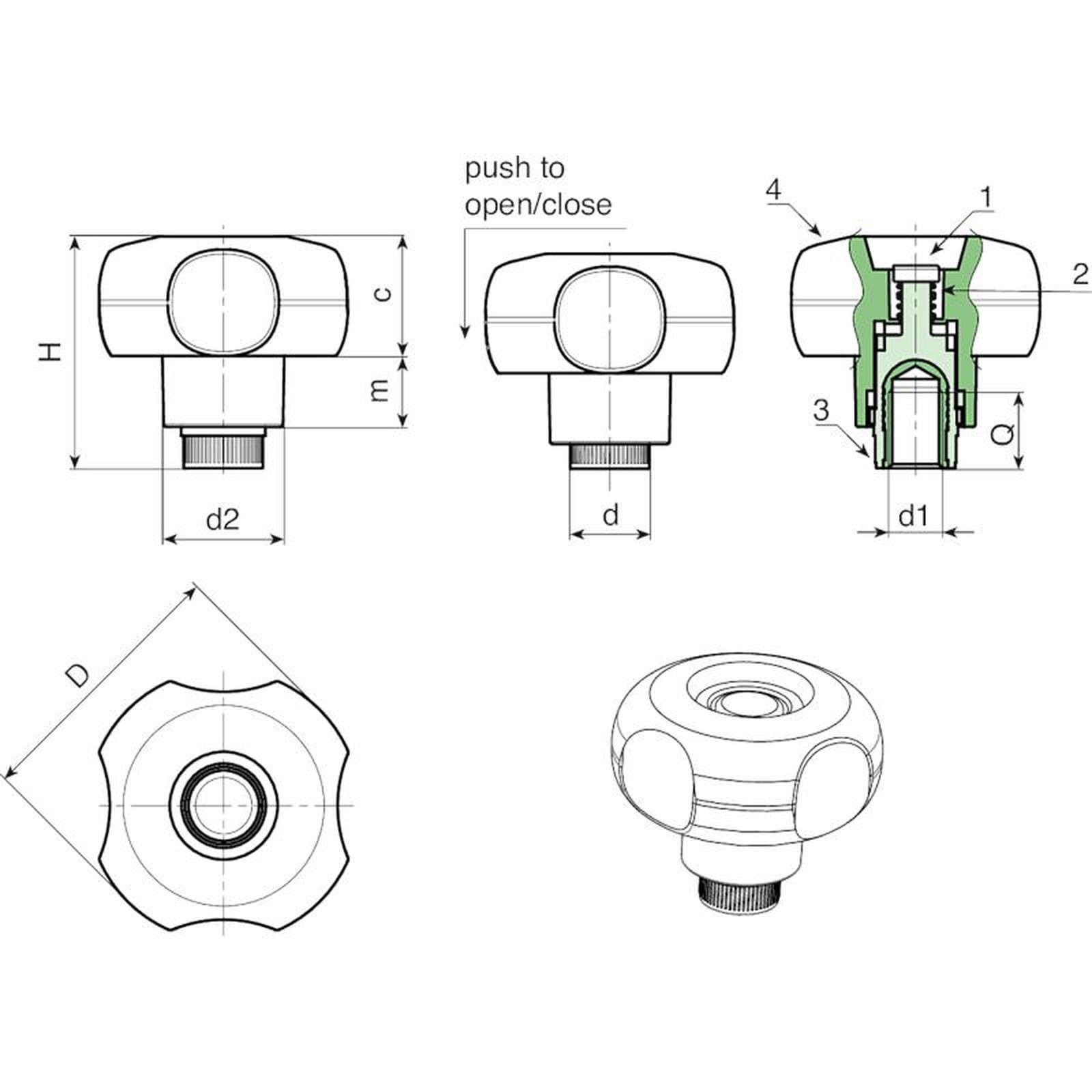

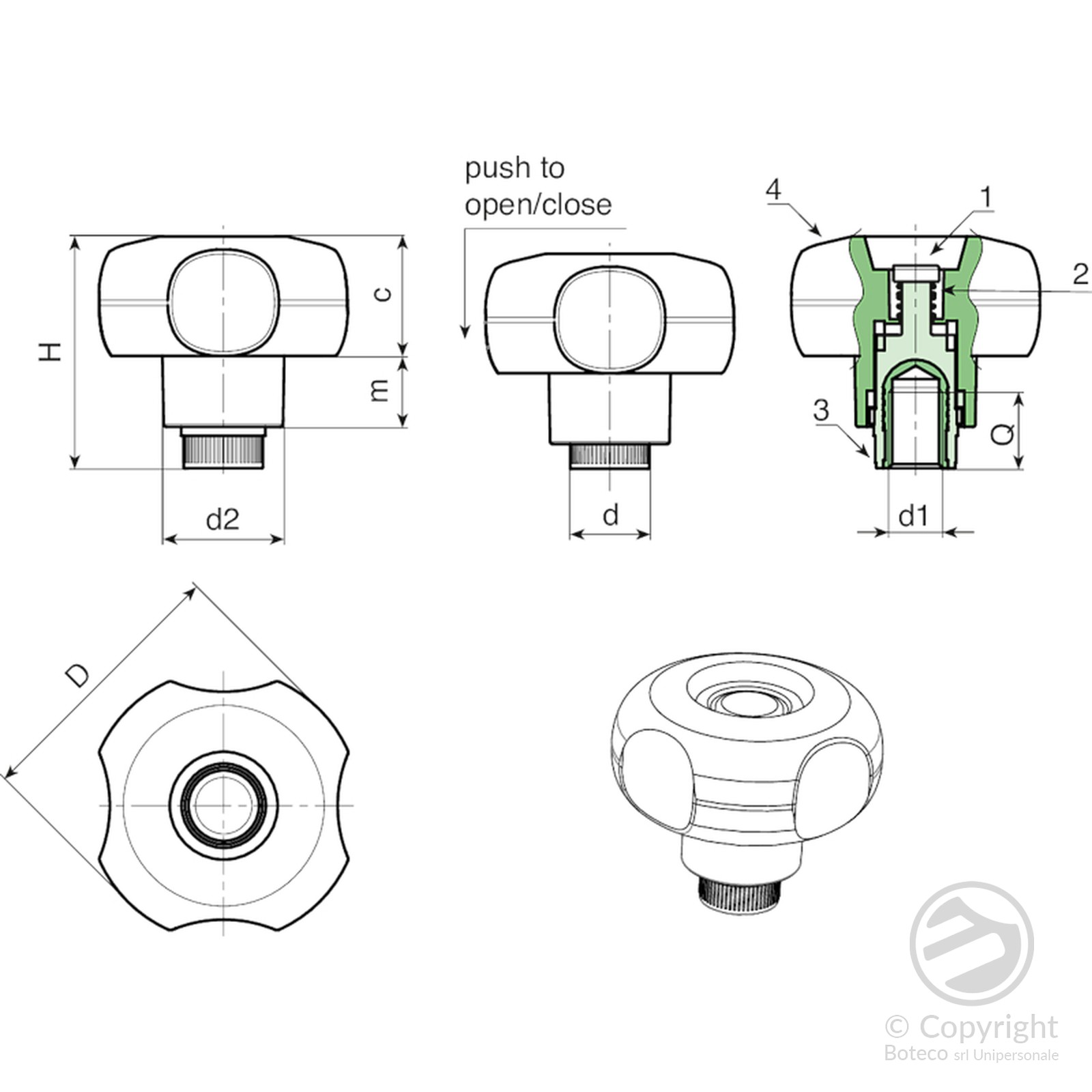

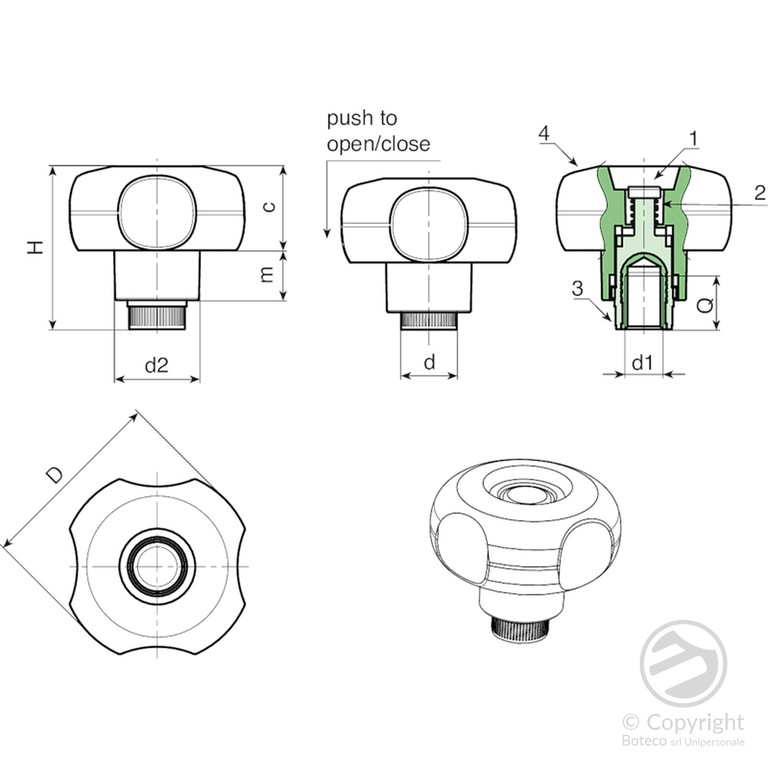

| Code | art. | D | H | d2 | d | m | c | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| G63050.0001 | G63050.TM060116 | 49 | 42.5 | 22 | 15 | 13 | 22 | M6 | 14 | 37 |
| G63050.0004 | G63050.TM080116 | 49 | 42.5 | 22 | 15 | 13 | 22 | M8 | 14 | 37 |
| G63050.0006 | G63050.TM100116 | 49 | 42.5 | 22 | 15 | 13 | 22 | M10 | 14 | 38 |
