Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Hole:
Smooth through hole obtained by moulding the plastic.
Special requests:
Upon request and for special quantities available in the colours indicated in the chart.

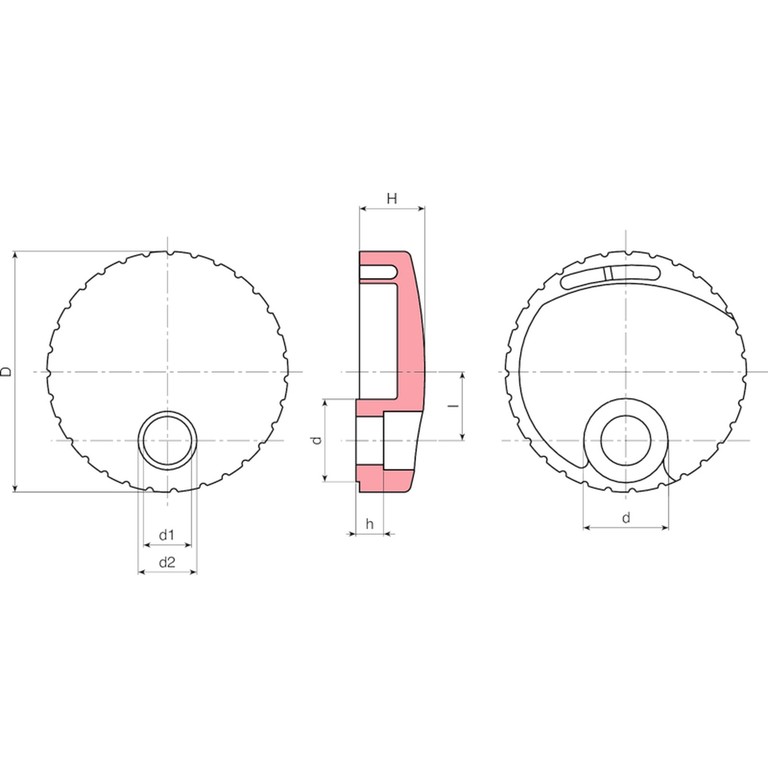

| Code | Art. | D | H | I | h | d | d1 | d | d2 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| T808L.0001 | T808L.T01 | 70 | 20 | 20 | 8 | 24 | 14.5 | 24 | 42 | 120 |
