Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.

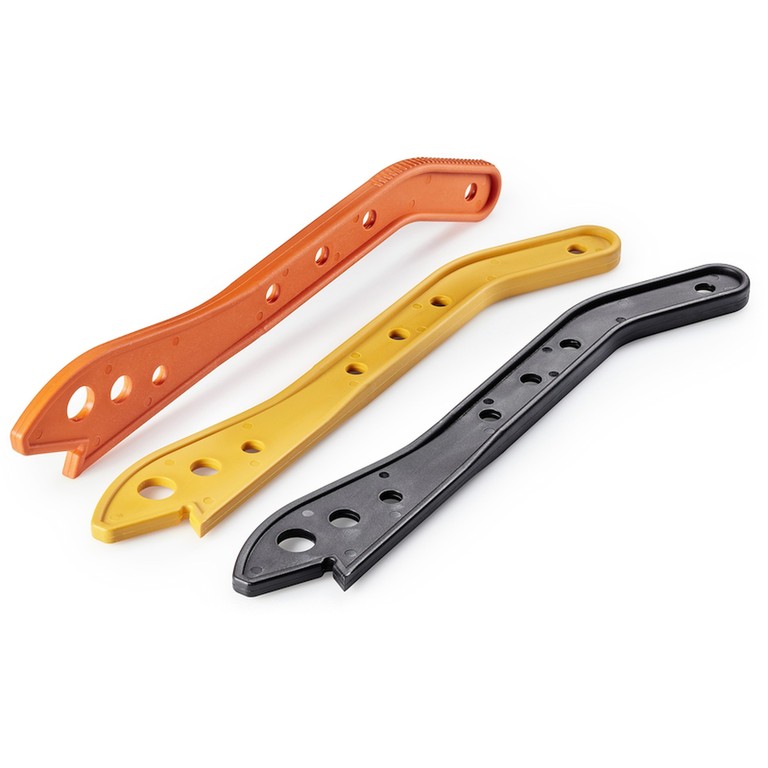

Colour:
Black(RAL 9011 code 01).
Orange(RAL 2004 code 02).
Orange(RAL 2011 code 03).
Yellow(RAL 1007 code 09).
Special requests:
None.

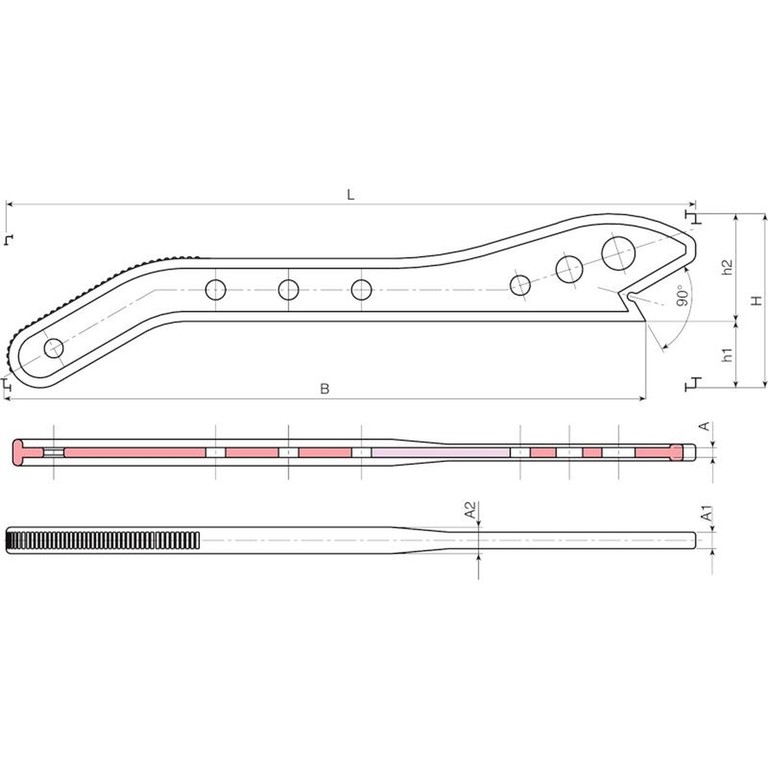

| Code | art. | L | B | H | h1 | h2 | A | A1 | A2 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| T252420.0001 | T252420.T01 | 415 | 386 | 105 | 40 | 65 | 6 | 10 | 16 | 160 |
| T252420.0002 | T252420.T02 | 415 | 386 | 105 | 40 | 65 | 6 | 10 | 16 | 160 |
| T252420.0003 | T252420.T03 | 415 | 386 | 105 | 40 | 65 | 6 | 10 | 16 | 160 |
| T252420.0004 | T252420.T09 | 415 | 386 | 105 | 40 | 65 | 6 | 10 | 16 | 160 |
