Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Inserts:
Galvanised steel nut with threaded through hole DIN 934/UNI 5588.
Special requests:
None.

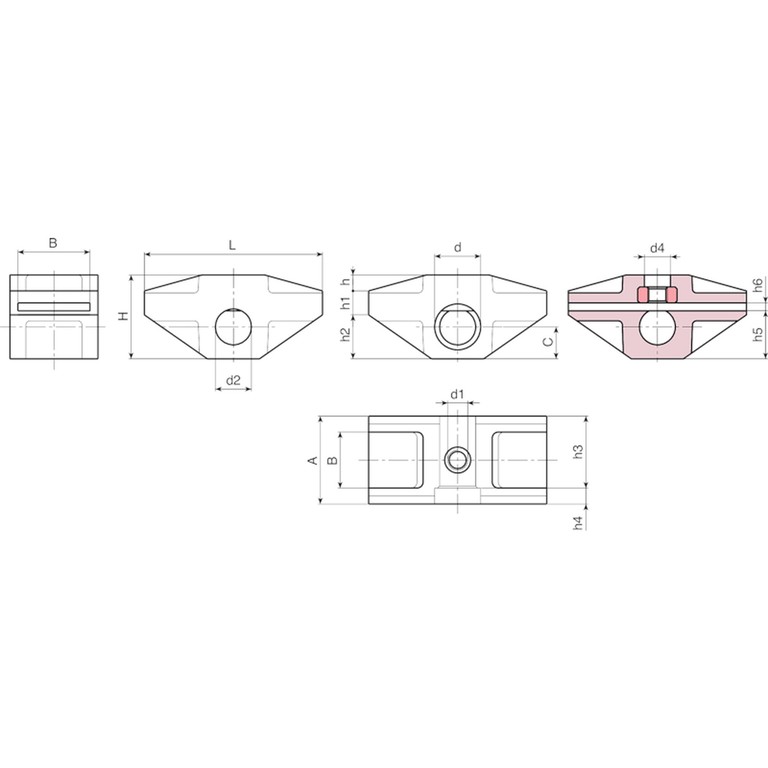

| Code | art. | L | H | A | B | c | E | d | d2 | d3 | h | h1 | h2 | h3 | h4 | h5 | h6 | d1 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T25190.0001 | T25190.TM1001 | 89 | 42 | 44 | 29 | 16 | 36 | 23 | 18 | 13.5 | 10 | 12 | 20 | 35 | 9 | 24.5 | 3 | M10 | 100 |
