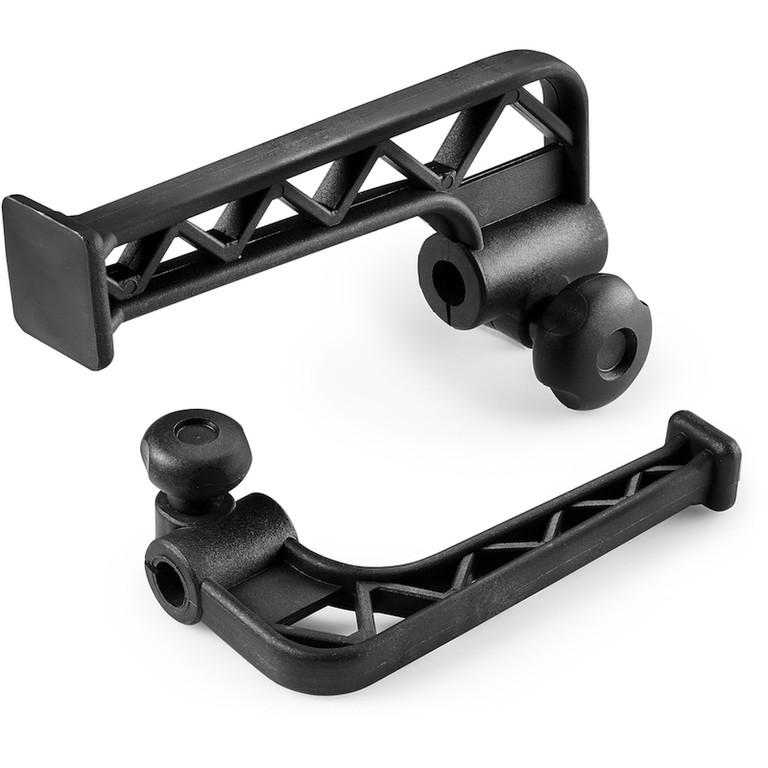

Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Hole:
Smooth through hole obtained by moulding the plastic.
Inserts:
(1) Galvanised steel nut with threaded through hole DIN 934 / UNI 5588
Locking handwheel:
R809130: art. G73230.TM06X25.
R809158: art. G73240.TM06X30.
Special requests:
None.

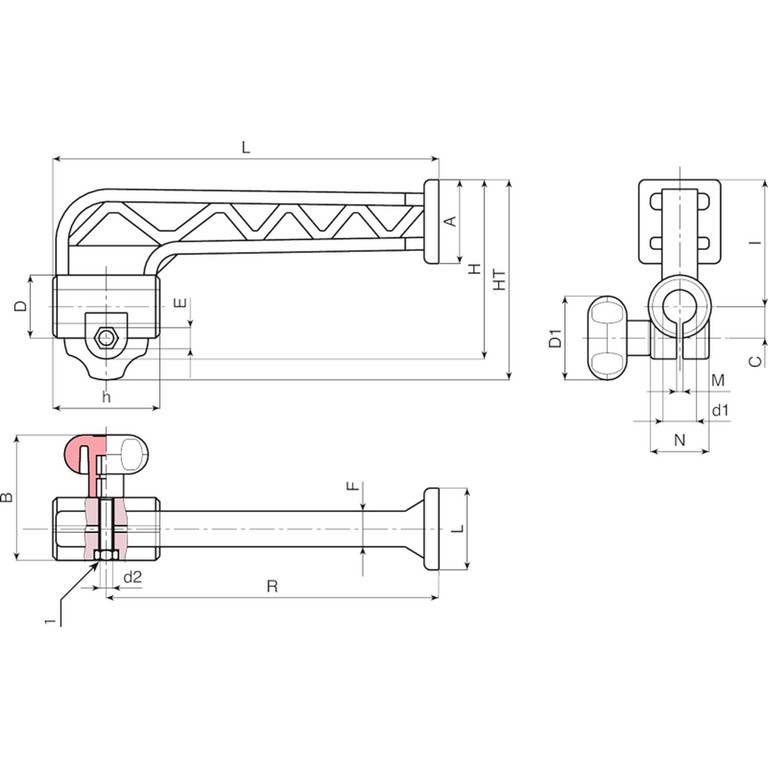

| Code | Art. | R | L | H | HT | D | D1 | A | B | C | E | F | I | M | N | h | d1 | d2 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R809130.0001 | R809130.TD1201 | 132 | 150 | 85 | 90 | 24,5 | 30 | 25 | 47 | 12 | 10 | 14,5 | 63 | 2 | 24,5 | 35 | 12 | M6 | 70 |
| R809130.0002 | R809130.TD1301 | 132 | 150 | 85 | 90 | 24,5 | 30 | 25 | 47 | 12 | 10 | 14,5 | 63 | 2 | 24,5 | 35 | 13 | M6 | 70 |
| R809130.0003 | R809130.TD1601 | 132 | 150 | 85 | 90 | 24,5 | 30 | 25 | 47 | 12 | 10 | 14,5 | 63 | 2 | 24,5 | 35 | 16 | M6 | 67 |
| R809158.0001 | R809158.TD1601 | 158 | 183 | 92 | 102 | 29 | 40 | 40 | 57 | 14,5 | 10 | 17 | 67 | 2 | 28,5 | 51 | 16 | M6 | 130 |
| R809158.0002 | R809158.TD2001 | 158 | 183 | 92 | 102 | 29 | 40 | 40 | 57 | 14,5 | 10 | 17 | 67 | 2 | 28,5 | 51 | 20 | M6 | 130 |
