Materials:
Impact resistant polystyrene.
Surface finish:
Smooth.
Colour:
Black(RAL 9011).
Special requests:
None.
Compatible accessories:
Terminal block article R532.

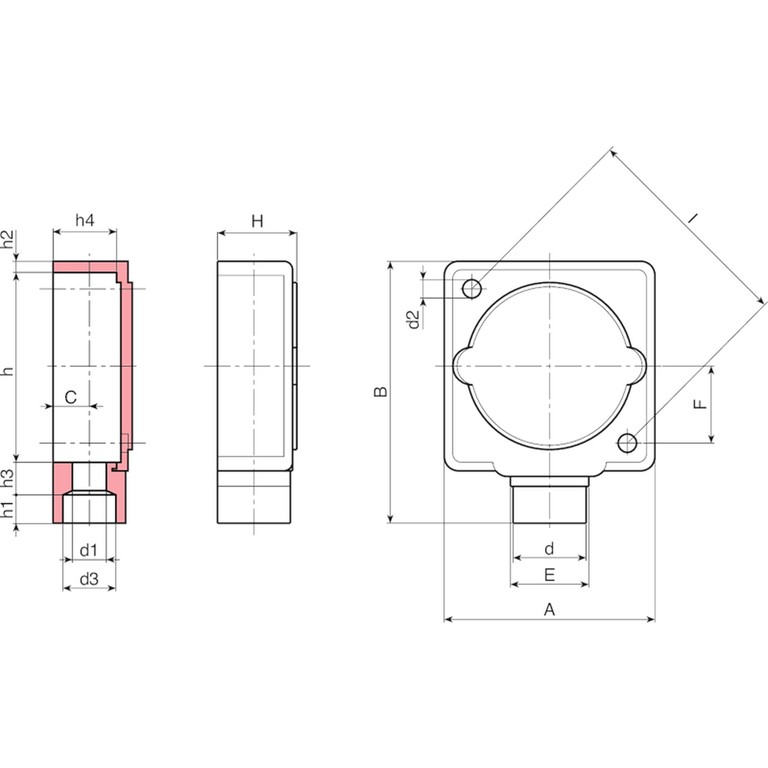

| Code | Art. | A | B | H | I | C | E | F | d | d1 | d2 | d3 | h | h1 | h2 | h3 | h4 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R53676.0002 | R53676.P01 | 75 | 92 | 29 | 78,5 | 13 | 28 | 28 | 26 | 12 | 6,5 | 19 | 67 | 11.5 | 4 | 10 | 23 | 57 |
