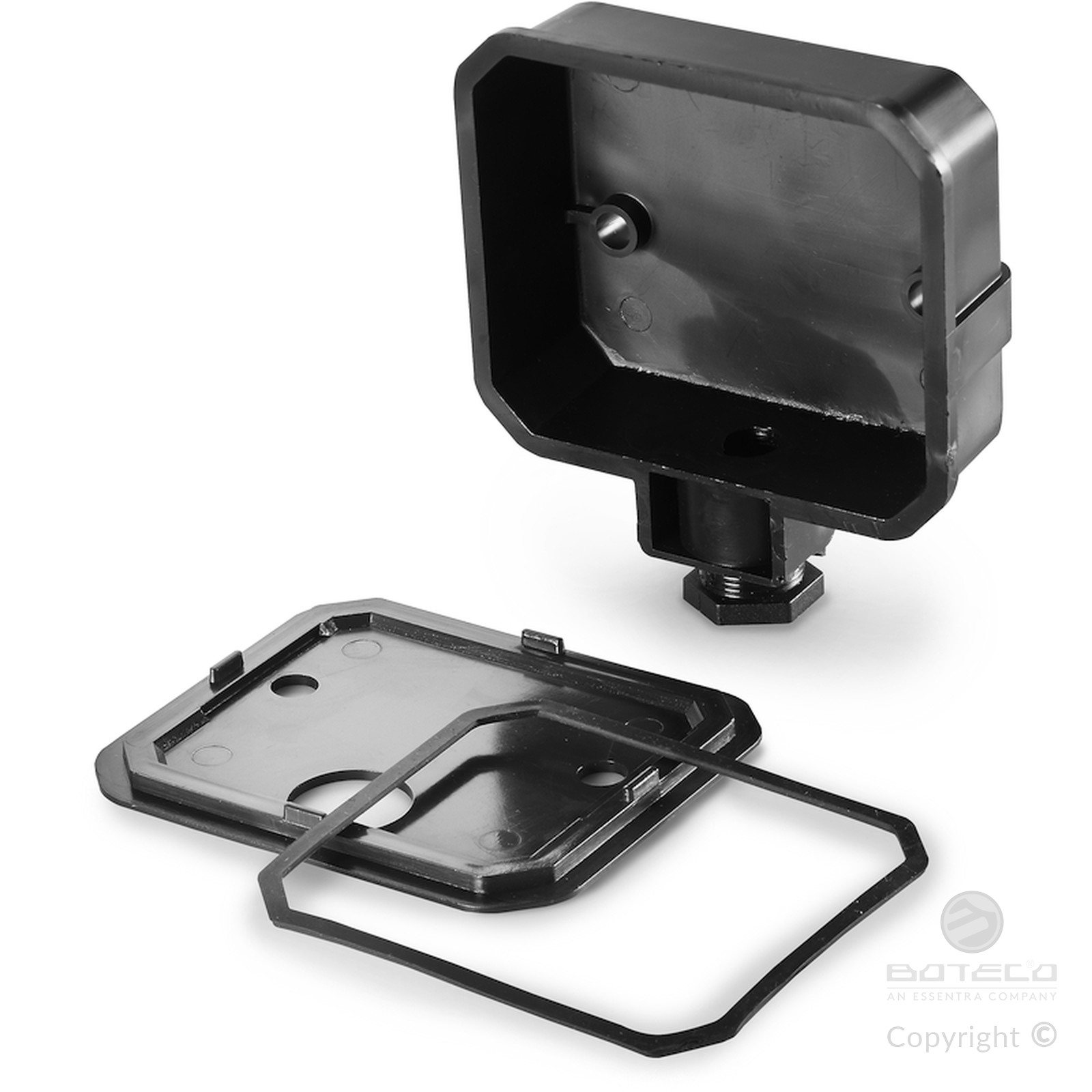

TERMINAL BLOCK COVER WITH MOUNTING PLATE AND GASKET AND CABLE ENTRY PG16
Terminal boards and covers
Materials:
(1-2-4) Polistirolo antiurto.
(3-5) Thermoplastic rubber 75 shore.
Surface finish:
Smooth.
Colour:
Black(RAL 9011).
Special requests:
None.
Compatible accessories:
4 way terminal block article R530.
5 way terminal block article R534.

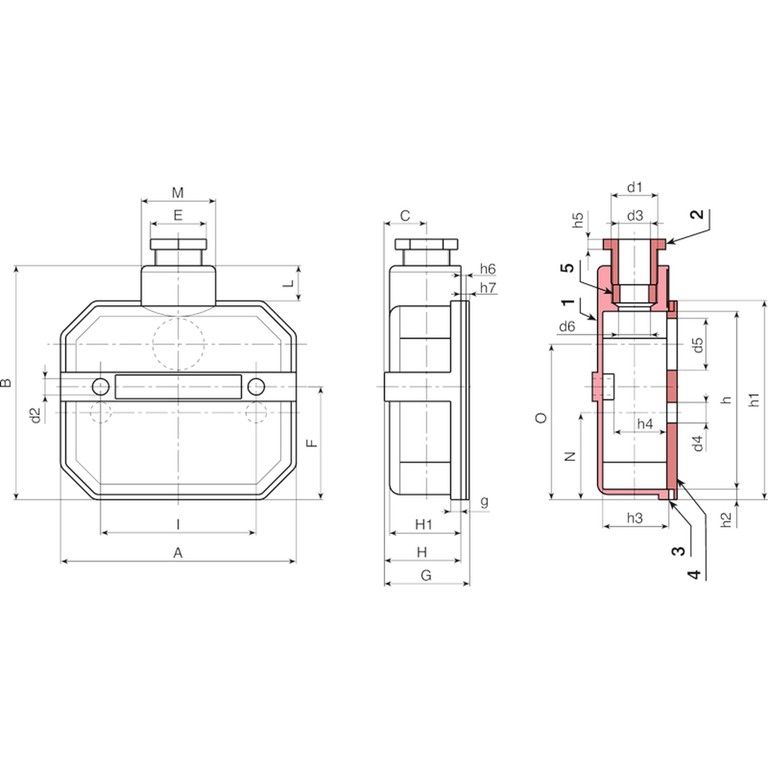

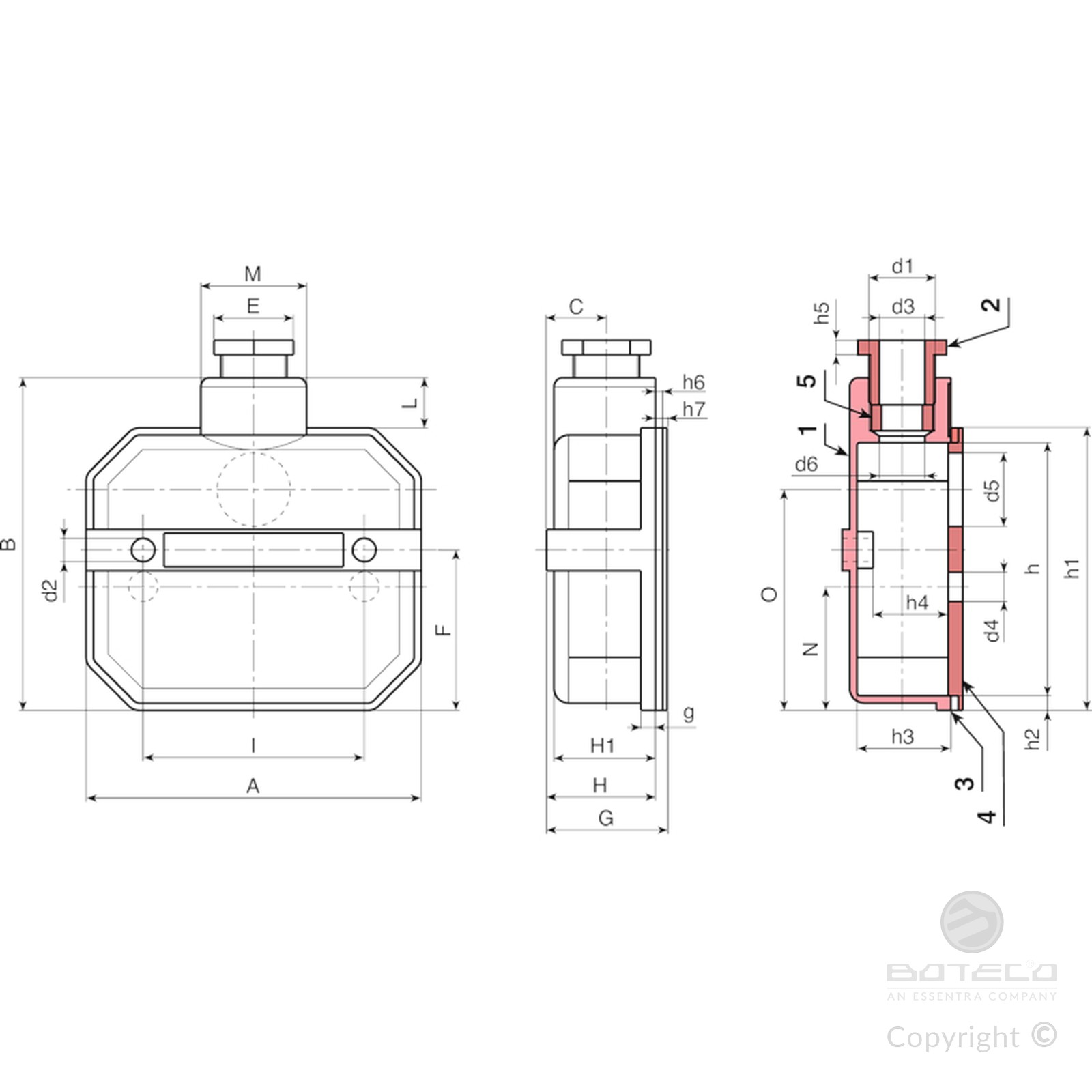

| Code | art. | A | B | C | E | F | G | H | H1 | I | L | M | N | O | d1 | d2 | d3 | d4 | d5 | d6 | g | h | h1 | h2 | h3 | h4 | h5 | h6 | h7 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
