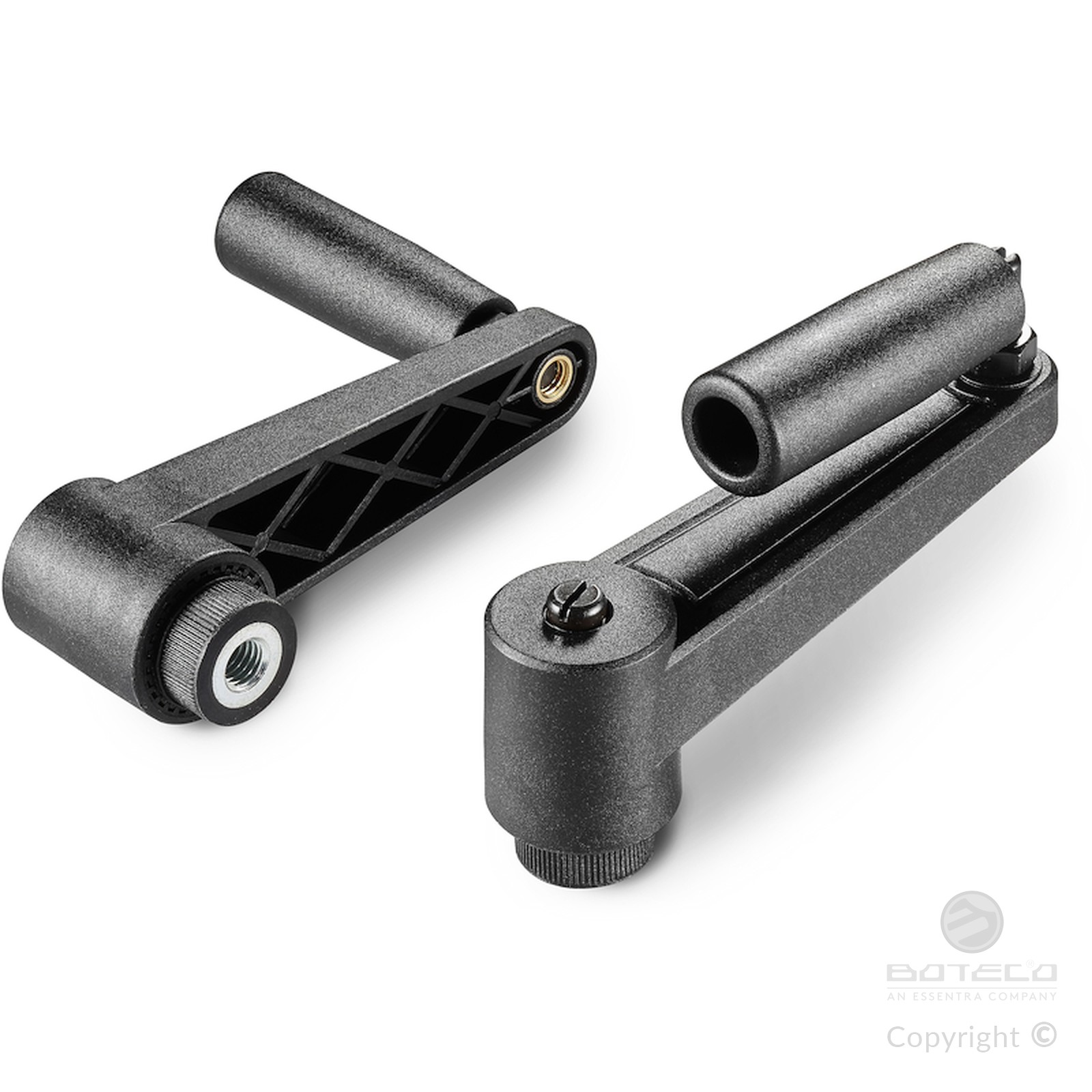

Material:
Reinforced polyamide. Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Inserts:
Galvanised steel insert with female threaded hole (thread tolerance 6H).
Lateral insert:
Brass insert with threaded through hole.
Spring:
Stainless steel spring (Aisi 302).
Fixing screw:
Black oxide treated steel screw with slotted head.
Lateral handle:
Revolving, folding handle art. M136.
Special requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities crank handle body available in the colours indicated in the chart.

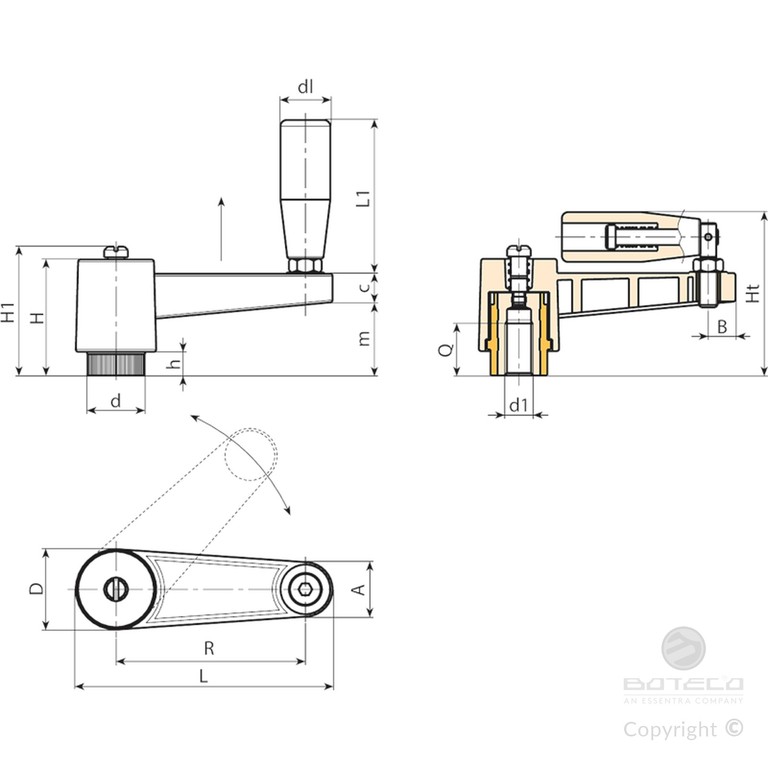

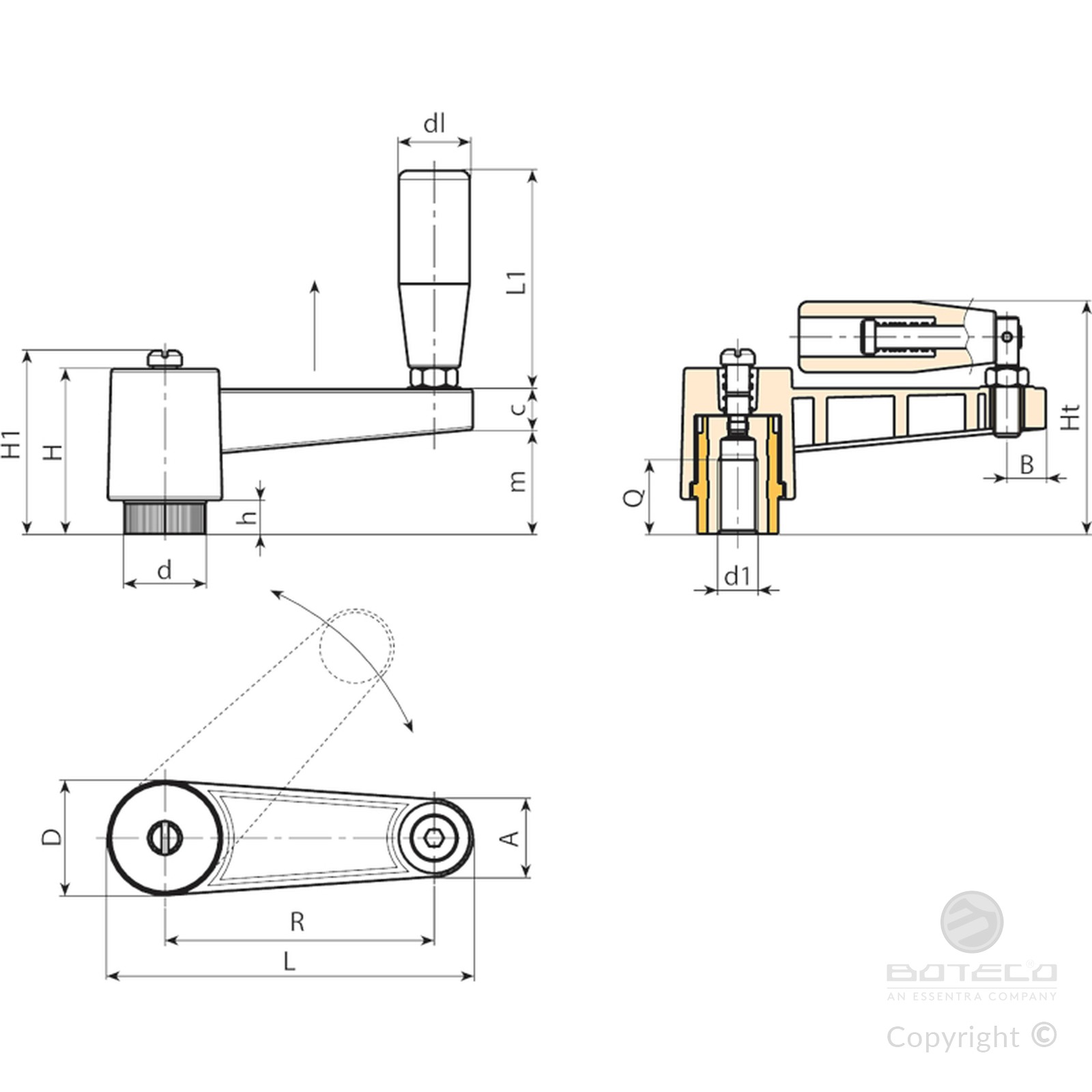

| Code | Art. | L | R | H | D | d | m | c | A | B | h | H1 | Ht | d1 6H | Q | dl | L1 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E519065.0001 | E519065.TM0801 | 87,5 | 65 | 46 | 27 | 19 | 30 | 13 | 17 | 9 | 10 | - | 67,5 | M8 | 18 | 20 | 54 | 104 |
| E519065.0002 | E519065.TM1001 | 87,5 | 65 | 46 | 27 | 19 | 30 | 13 | 17 | 9 | 10 | - | 67,5 | M10 | 18 | 20 | 54 | 102 |
| E519065.0003 | E519065.TM1201 | 87,5 | 65 | 46 | 27 | 19 | 30 | 13 | 17 | 9 | 10 | - | 67,5 | M12 | 18 | 20 | 54 | 100 |
| E519080.0002 | E519080.TM1201 | 109 | 80 | 50 | 34 | 24,5 | 33 | 13 | 22 | 12 | 11 | 54 | 75 | M12 | 22 | 23,5 | 76 | 185 |
| E519080.0003 | E519080.TM1401 | 109 | 80 | 50 | 34 | 24,5 | 33 | 13 | 22 | 12 | 11 | 54 | 75 | M14 | 22 | 23,5 | 76 | 180 |
| E519080.0004 | E519080.TM1601 | 109 | 80 | 50 | 34 | 24,5 | 33 | 13 | 22 | 12 | 11 | 54 | 75 | M16 | 22 | 23,5 | 76 | 174 |
| E519110.0002 | E519110.TM1201 | 139 | 110 | 50 | 34 | 24,5 | 33 | 13 | 22 | 12 | 11 | 54 | 75 | M12 | 22 | 23,5 | 76 | 199 |
| E519110.0003 | E519110.TM1401 | 139 | 110 | 50 | 34 | 24,5 | 33 | 13 | 22 | 12 | 11 | 54 | 75 | M14 | 22 | 23,5 | 76 | 220 |
| E519110.0004 | E519110.TM1601 | 139 | 110 | 50 | 34 | 24,5 | 33 | 13 | 22 | 12 | 11 | 54 | 75 | M16 | 22 | 23,5 | 76 | 225 |
