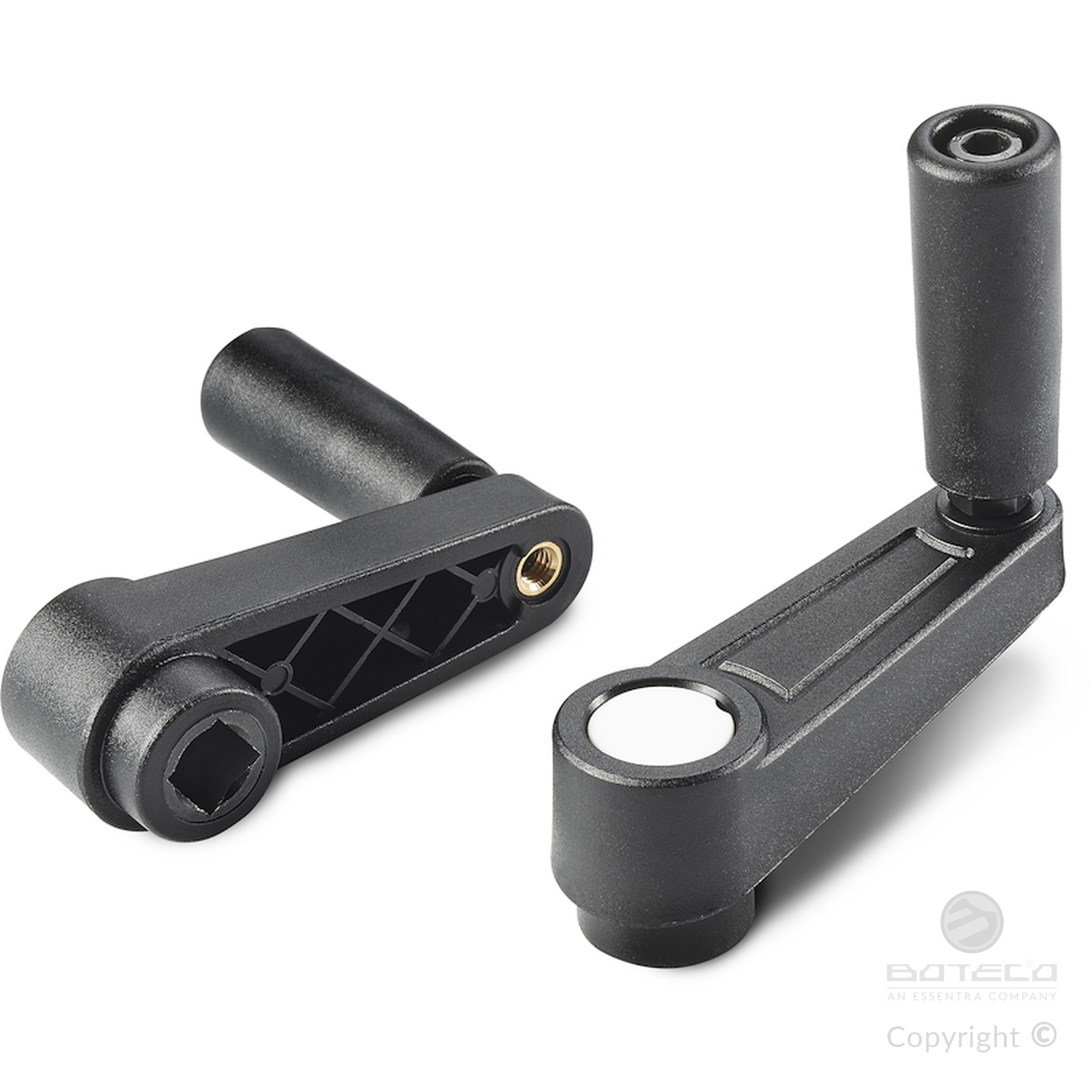

Material:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Central cap:
Grey polyamide (RAL 7035). 13).
Alternative Cap colours:
Orange(RAL 2004 code 02).
Red(RAL 3000 code 16).
Blue(RAL 5015 code 07).
Green(RAL 6024 code 17).
Yellow(RAL 1021 code 10).
Black(RAL 9011 code 01).
Inserts:
Bush with square through hole in black oxide treated steel (hole tolerance H10).
Lateral insert:
Brass insert with threaded through hole.
Lateral handle:
Revolving handle art. M144.
Special requests:
Upon request and for special quantities inserts can be supplied in different materials/with different coatings.
Upon request and for special quantities available in the colours indicated in the chart.

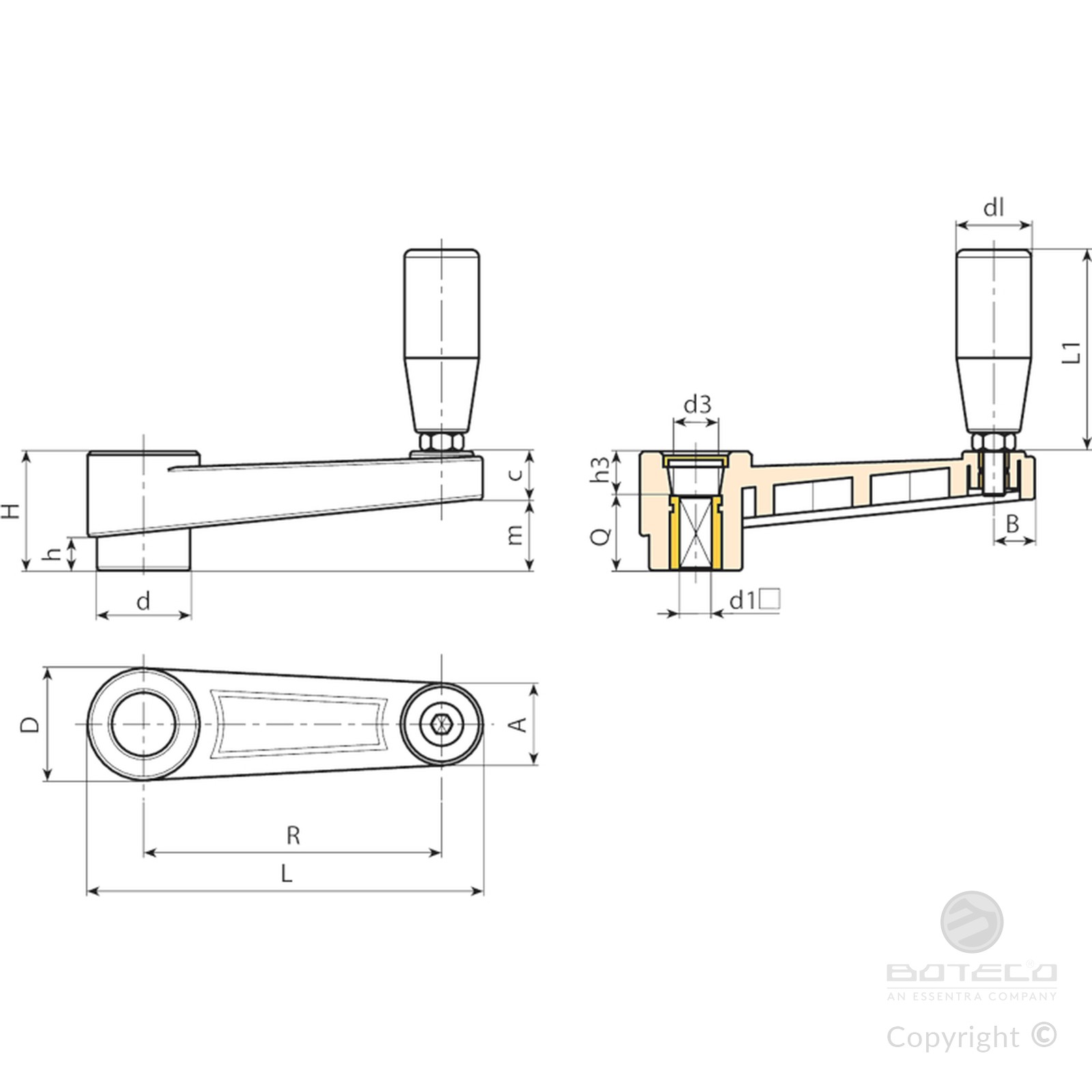

| Code | Art. | L | R | H | D | d | m | c | A | B | h | d3 | h3 | d1 H10 | Q | dl | L1 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E330065.0001 | E330065.TQ0601P | 88,5 | 65 | 30 | 27,5 | 22 | 17 | 13 | 18 | 9,5 | 8 | 14,5 | 10 | 6 | 20 | 19 | 54 | 96 |
| E330065.0002 | E330065.TQ0801P | 88,5 | 65 | 30 | 27,5 | 22 | 17 | 13 | 18 | 9,5 | 8 | 14,5 | 10 | 8 | 20 | 19 | 54 | 92 |
| E330080.0002 | E330080.TQ1001P | 107 | 80 | 33,5 | 32 | 26 | 20,5 | 13 | 23 | 11 | 9 | 19,5 | 9,5 | 10 | 24 | 19 | 54 | 105 |
| E330110.0003 | E330110.TQ1201P | 140 | 110 | 39 | 35 | 29 | 25 | 14 | 24 | 12 | 11 | 19,5 | 11 | 12 | 28 | 21 | 66 | 152 |
| E330140.0001 | E330140.TQ1401P | 175 | 140 | 49 | 44 | 35,5 | 32 | 17 | 27 | 13 | 15,5 | 24 | 19 | 14 | 30 | 23,5 | 76 | 242 |
| E330185.0001 | E330185.TQ1701P | 223 | 185 | 55 | 47,5 | 40 | 38,5 | 16,5 | 27 | 14 | 17 | 29,5 | 21 | 17 | 34 | 25,5 | 87 | 385 |
