E219

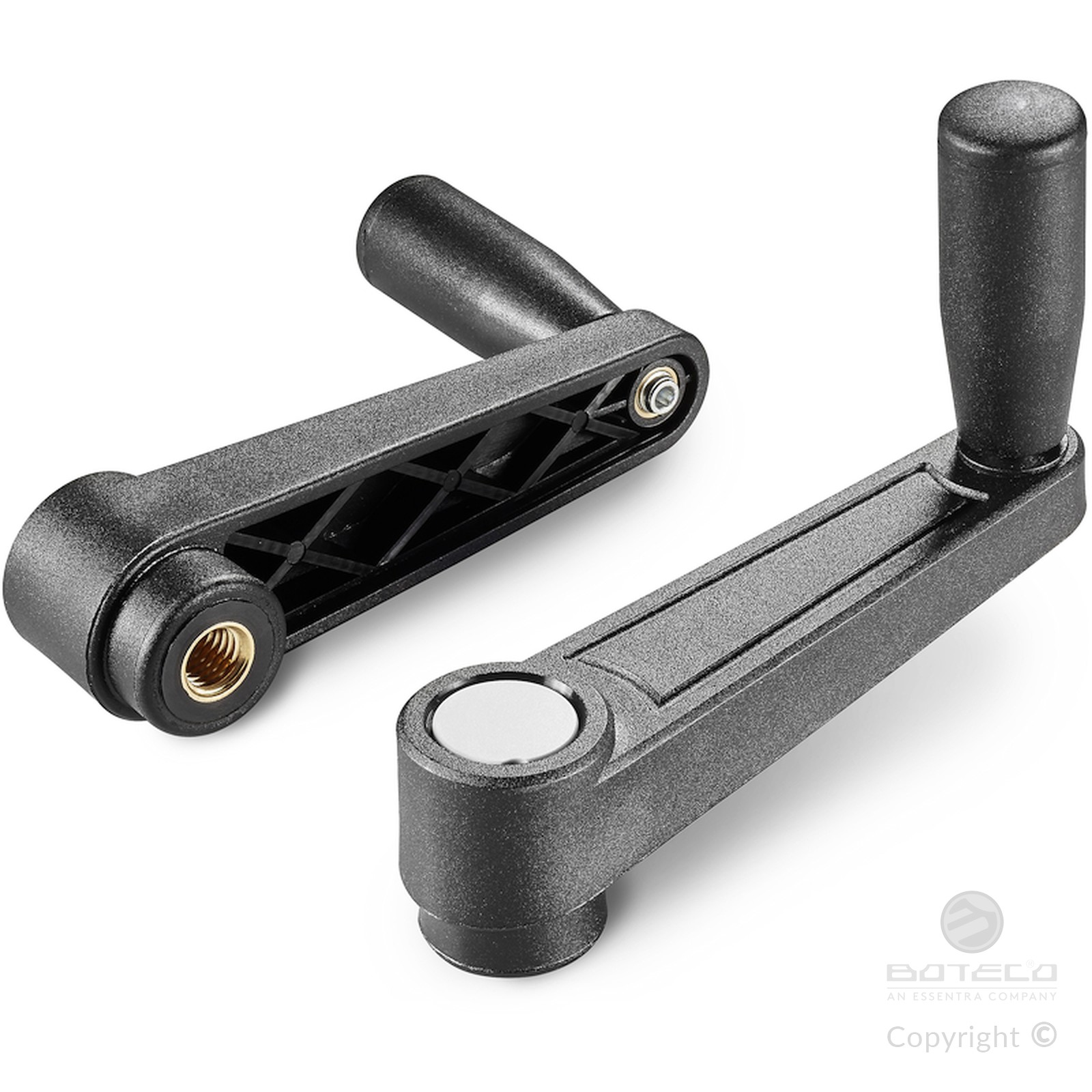

CRANK HANDLE WITH THREADED INSERT AND REVOLVING HANDLE M129
Crank handles with threaded hole
Material:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Central cap:
Grey polyamide (RAL 7035). 13).
Alternative Cap colours:
Orange(RAL 2004 code 02).
Red(RAL 3000 code 16).
Blue(RAL 5015 code 07).
Green(RAL 6024 code 17).
Yellow(RAL 1021 code 10).
Black(RAL 9011 code 01).
Inserts:
Brass insert with female threaded hole (thread tolerance 6H).
(*) Galvanised steel insert with female threaded hole (thread tolerance 6H).
Lateral insert:
Brass insert with threaded through hole.
Lateral handle:
Revolving handle art. M129.
Special requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart.

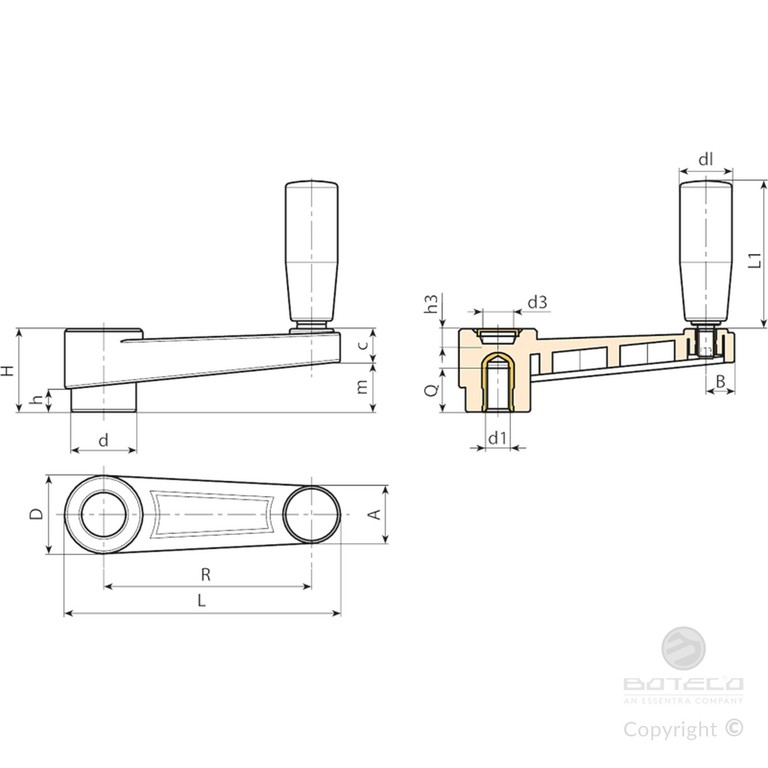

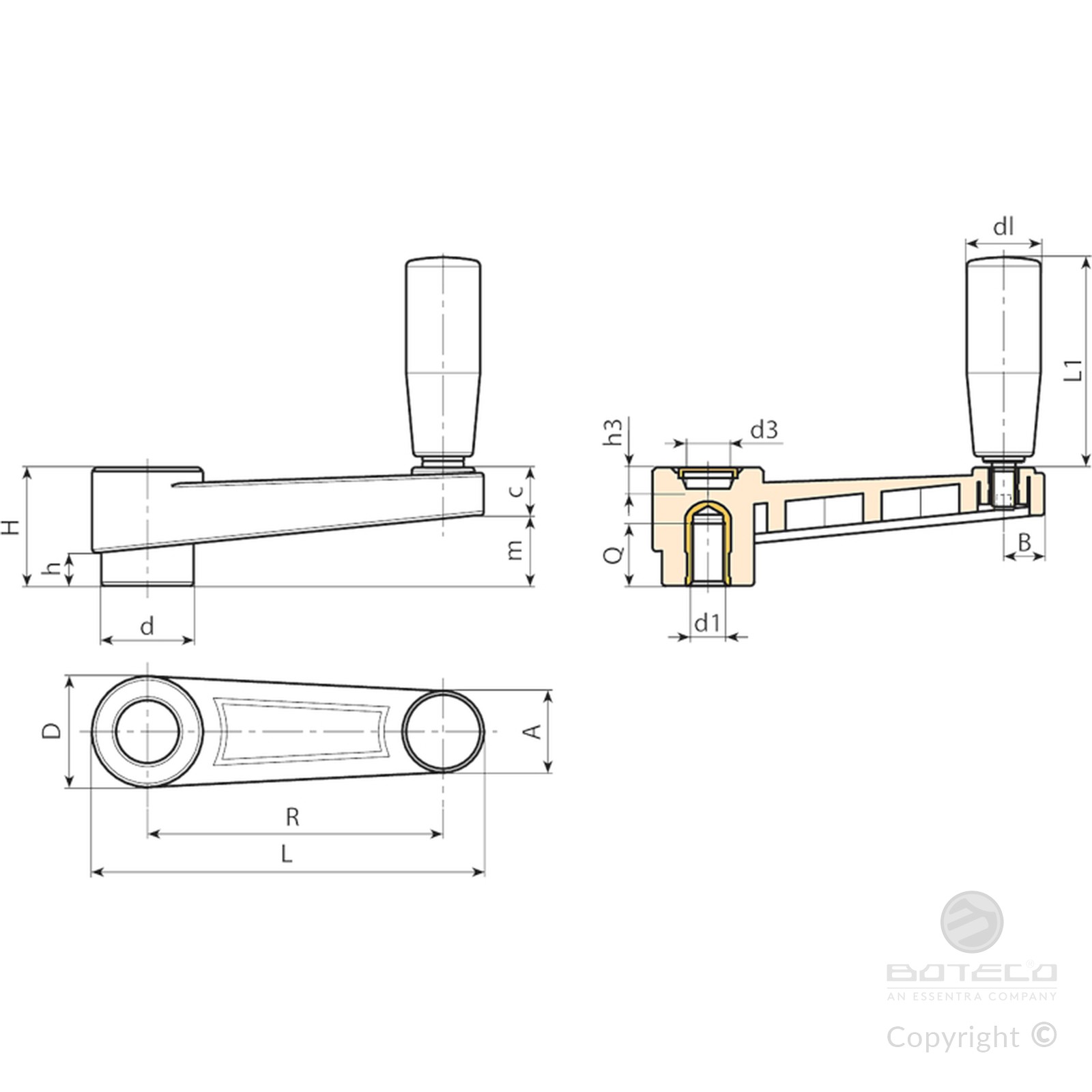

| Code | Art. | L | R | H | D | d | m | c | A | B | h | d3 | h3 | d1 6H | Q | dl | L1 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E219065.0001 | E219065.TM0801 | 89 | 65 | 30 | 27,5 | 22 | 17 | 13 | 20 | 9,5 | 8 | 14,5 | 10 | M8 | 13 | 20 | 52 | 79 |
| E219065.0002 | E219065.TM1001 | 89 | 65 | 30 | 27,5 | 22 | 17 | 13 | 20 | 9,5 | 8 | 14,5 | 10 | M10 | 13 | 20 | 52 | 82 |
| E219065.0003 | E219065.TM1201 | 89 | 65 | 30 | 27,5 | 22 | 17 | 13 | 20 | 9,5 | 8 | 14,5 | 10 | M12 | 13 | 20 | 52 | 85 |
| E219080.0001 | E219080.TM0801 | 107 | 80 | 33,5 | 32 | 26 | 20,5 | 13 | 23 | 11 | 9 | 19,5 | 9,5 | M8 | 13 | 20 | 52 | 95 |
| E219080.0002 | E219080.TM1001 | 107 | 80 | 33,5 | 32 | 26 | 20,5 | 13 | 23 | 11 | 9 | 19,5 | 9,5 | M10 | 13 | 20 | 52 | 99 |
| E219080.0003 | E219080.TM1201 | 107 | 80 | 33,5 | 32 | 26 | 20,5 | 13 | 23 | 11 | 9 | 19,5 | 9,5 | M12 | 13 | 20 | 52 | 102 |
| E219110.0001 | E219110.TM1001 | 140 | 110 | 39 | 35 | 29 | 25 | 14 | 24 | 12 | 11 | 19,5 | 11 | M10 | 13 | 23,5 | 63 | 150 |
| E219110.0002 | E219110.TM1201 | 140 | 110 | 39 | 35 | 29 | 25 | 14 | 24 | 12 | 11 | 19,5 | 11 | M12 | 17 | 23,5 | 63 | 160 |
| E219110.0003 | E219110.TM1401 | 140 | 110 | 39 | 35 | 29 | 25 | 14 | 24 | 12 | 11 | 19,5 | 11 | M14 | 17 | 23,5 | 63 | 165 |
| E219140.0001 | E219140.TM1201 | 175 | 140 | 49 | 44 | 35,5 | 32 | 17 | 27 | 13 | 15,5 | 24 | 19 | M12 | 17 | 25 | 72 | 262 |
| E219140.0002 | E219140.TM1401 | 175 | 140 | 49 | 44 | 35,5 | 32 | 17 | 27 | 13 | 15,5 | 24 | 19 | M14 | 17 | 25 | 72 | 249 |
| E219140.0003 | E219140.TM1601 | 175 | 140 | 49 | 44 | 35,5 | 32 | 17 | 27 | 13 | 15,5 | 24 | 19 | (*) M16 | 17 | 25 | 72 | 275 |
| E219185.0001 | E219185.TM1201 | 223 | 185 | 55 | 47,5 | 40 | 38,5 | 16,5 | 27 | 14 | 17 | 29,5 | 21 | M12 | 17 | 26 | 82 | 312 |
| E219185.0002 | E219185.TM1401 | 223 | 185 | 55 | 47,5 | 40 | 38,5 | 16,5 | 27 | 14 | 17 | 29,5 | 21 | M14 | 17 | 26 | 82 | 320 |
| E219185.0003 | E219185.TM1601 | 223 | 185 | 55 | 47,5 | 40 | 38,5 | 16,5 | 27 | 14 | 17 | 29,5 | 21 | (*) M16 | 17 | 26 | 82 | 331 |
