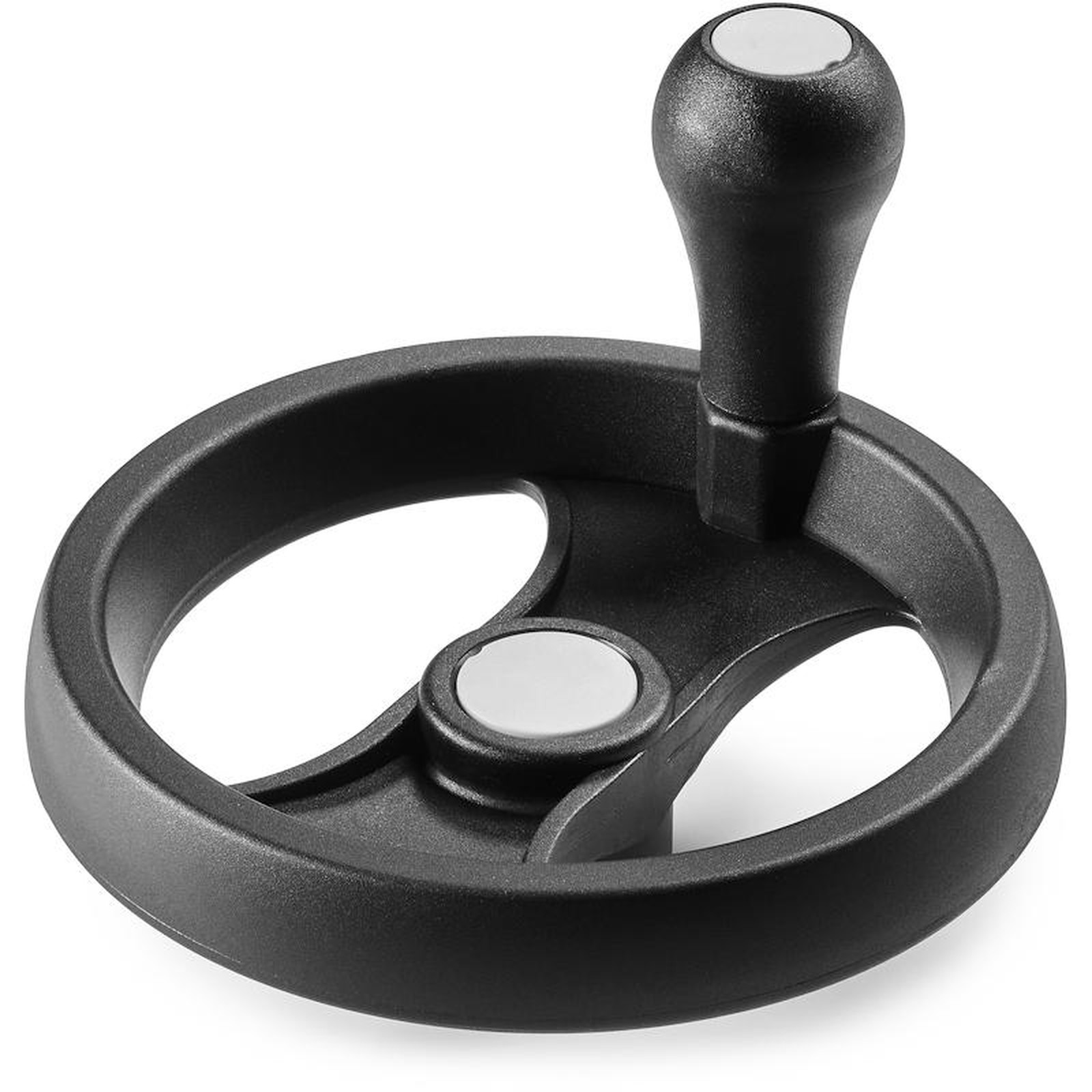

TWO-SPOKE CONTROL HANDWHEEL WITH REVOLVING HANDLE M202
D211
Volantini a razze
Materials:
Reinforced and stabilized polyamide. Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Central cap:
Grey polyamide (RAL 7035). 13).
Alternative cap colours:
Orange(RAL 2004 code 02).
Blue(RAL 5015 code 07).
Yellow(RAL 1021 code 10).
Red(RAL 3000 code 16).
Green(RAL 6024 code 17).
Black(RAL 9011 code 01).
Main insert:
Galvanised steel insert with smooth through bore (tolerance H10).
Lateral insert:
Brass insert with threaded through hole.
Lateral handle:
Revolving handle art. M202.
Hub:
Solid Hub.
(*) Lightweight hub.
Fixing method:
For fixing systems, or execution of keyways or square holes, please refer to the technical notes attached to the catalogue.
Special requests:
On request and with a minimum of 50 pieces, the inserts can be supplied with the hole d1 with H7 tolerance and black-oxide finish.
Upon request and for special quantities inserts can be supplied with custom hole diameter d1.
Upon request and for special quantities inserts can be supplied in different materials/with different coatings.
Upon request and for special quantities spoke handwheels, handles and caps are available in the colours indicated in the chart (reduced range).

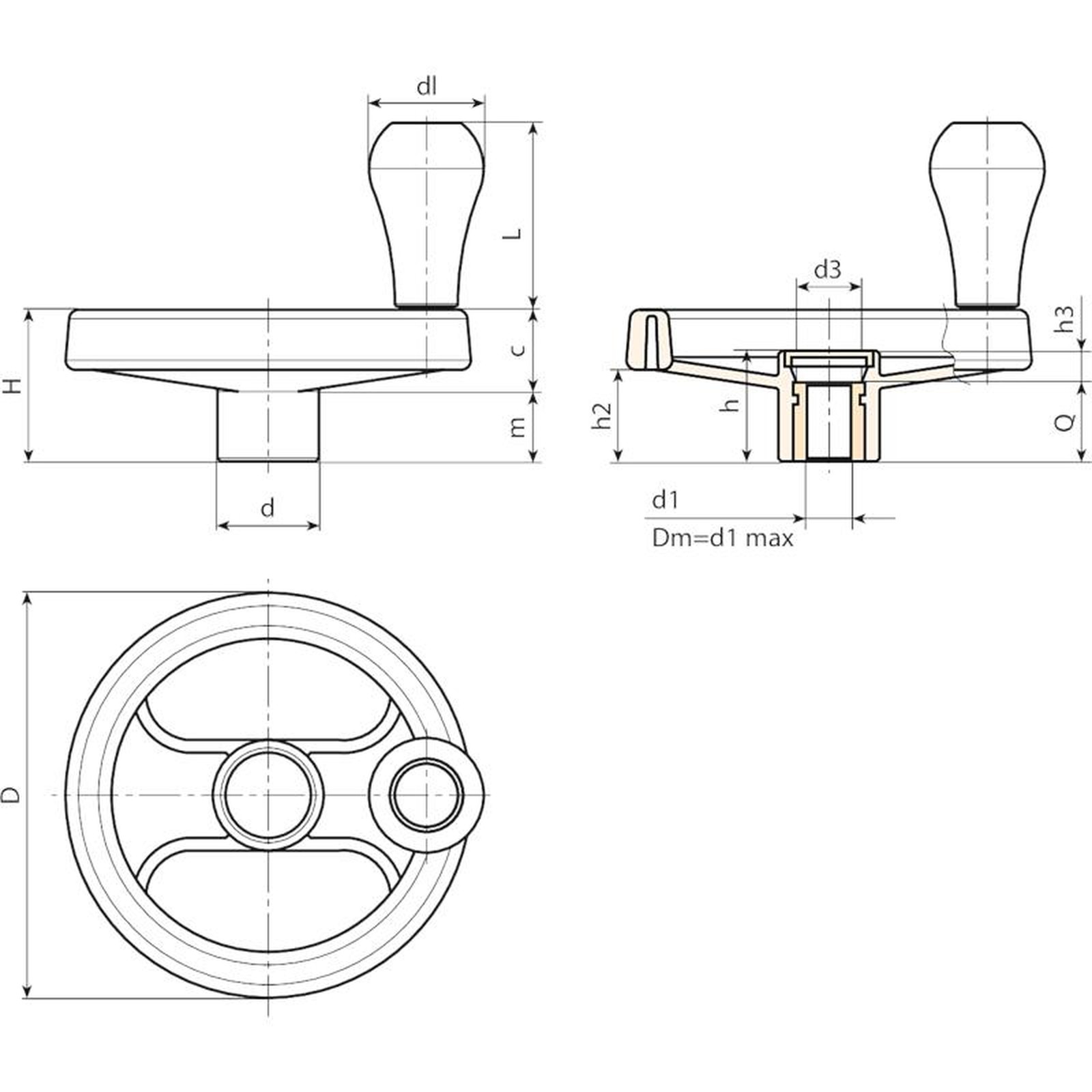

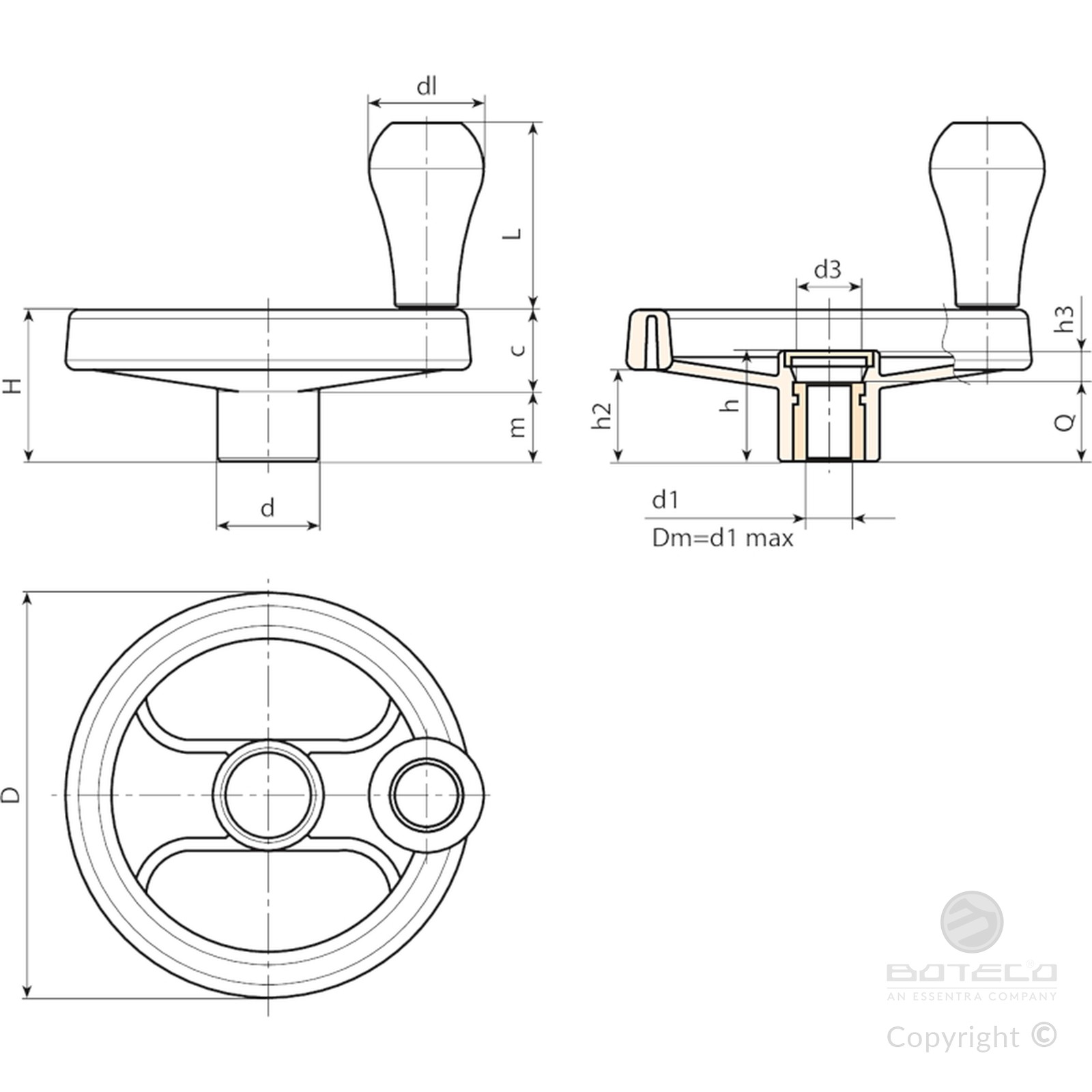

| Code | Art. | D | D2 | H | h | d | m | c | h2 | h3 | d3 | dl | L | Dm | d1 H10 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D211250.0001 | D211250.TD0801P | 252 | 257 | 70 | 48 | 56 | 23 | 47 | 38,5 | 12 | 31,5 | 40 | 63,5 | 28 | 8 | 36 | 1100 |
| D211350.0001 | D211350.TD0801P | 349 | - | 78 | 49 | 67 | 21 | 57 | 42 | 17 | 34 | 40 | 63,5 | 30 | (*) 8 | 32 | 1630 |
