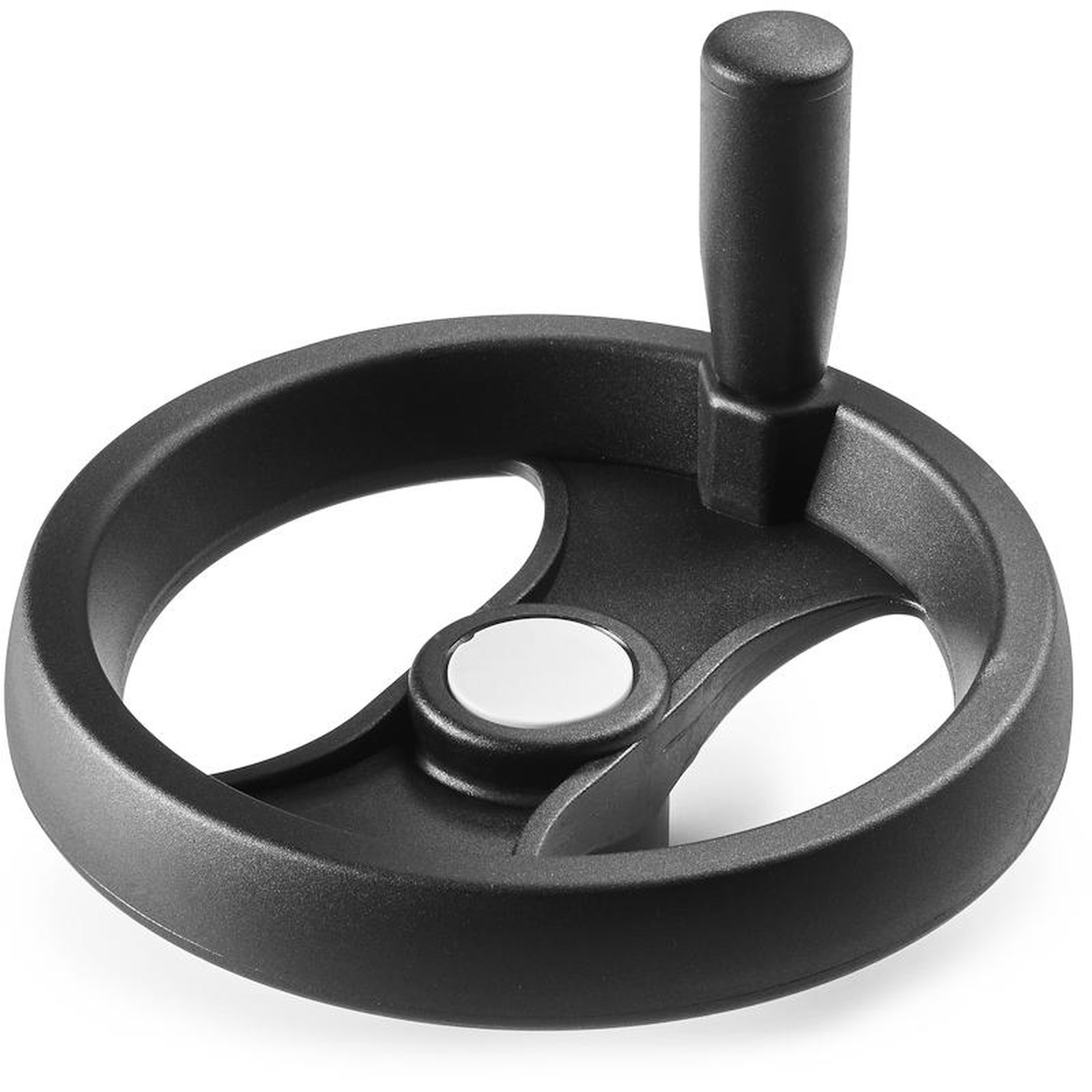

TWO-SPOKE CONTROL HANDWHEEL WITH REVOLVING HANDLE M129
D210
Volantini a razze
Materials:
Reinforced and stabilized polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Central cap:
Grey polyamide (RAL 7035). 13).
Alternative cap colours:
Orange(RAL 2004 code 02).
Blue(RAL 5015 code 07).
Yellow(RAL 1021 code 10).
Red(RAL 3000 code 16).
Green(RAL 6024 code 17).
Black(RAL 9011 code 01).
Main insert:
Galvanised steel insert with smooth through bore (tolerance H10).
Lateral insert:
Brass insert with threaded through hole.
Lateral handle:
Revolving handle art. M129.
Hub:
Solid Hub.
(*) Lightweight hub.
Fixing method:
For fixing systems, or execution of keyways or square holes, please refer to the technical notes attached to the catalogue.
Special requests:
On request and with a minimum of 50 pieces, the inserts can be supplied with the hole d1 with H7 tolerance and black-oxide finish.
Upon request and for special quantities inserts can be supplied with custom hole diameter d1.
Upon request and for special quantities inserts can be supplied in different materials/with different coatings.
Upon request and for special quantities spoke handwheels, handles and caps are available in the colours indicated in the chart (reduced range).

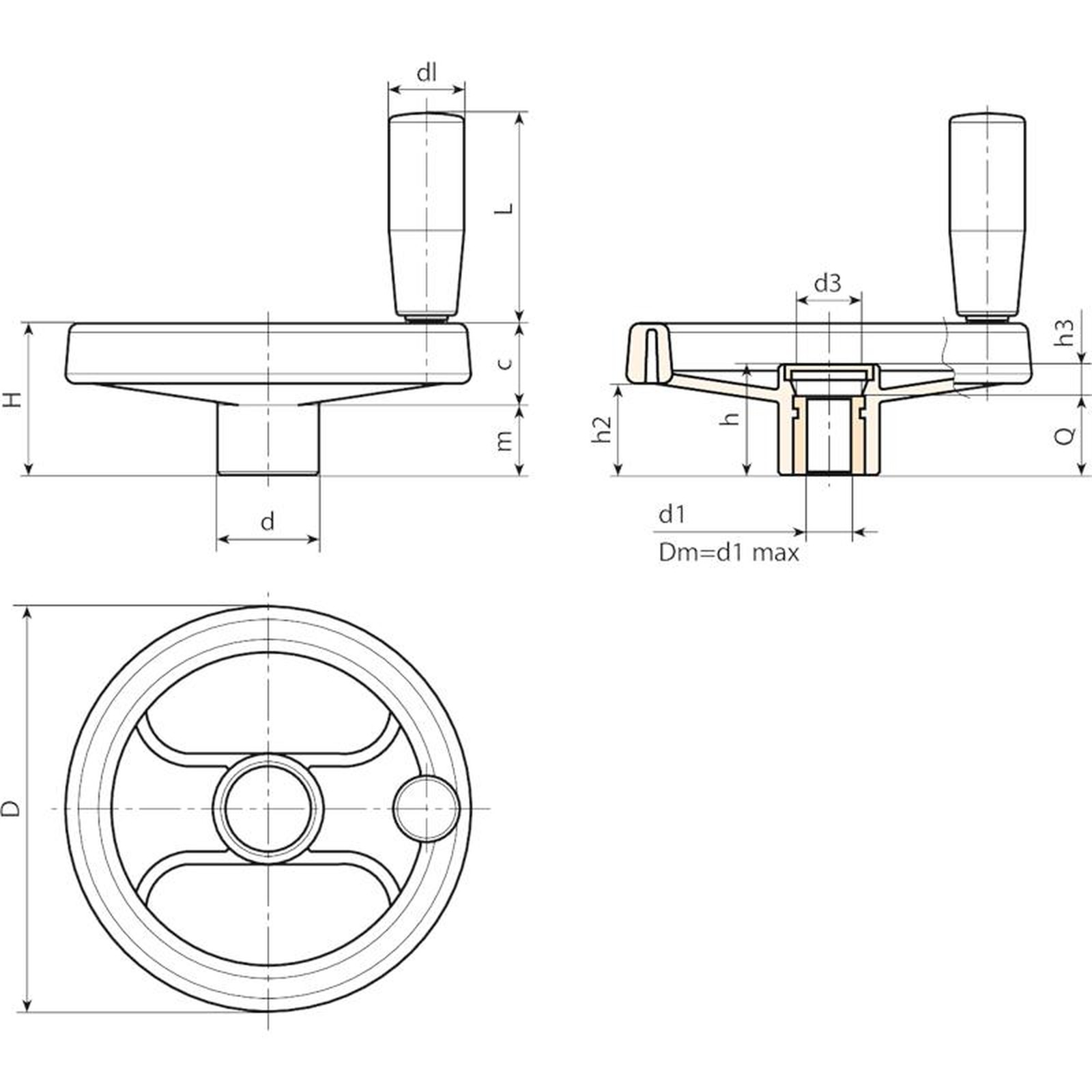

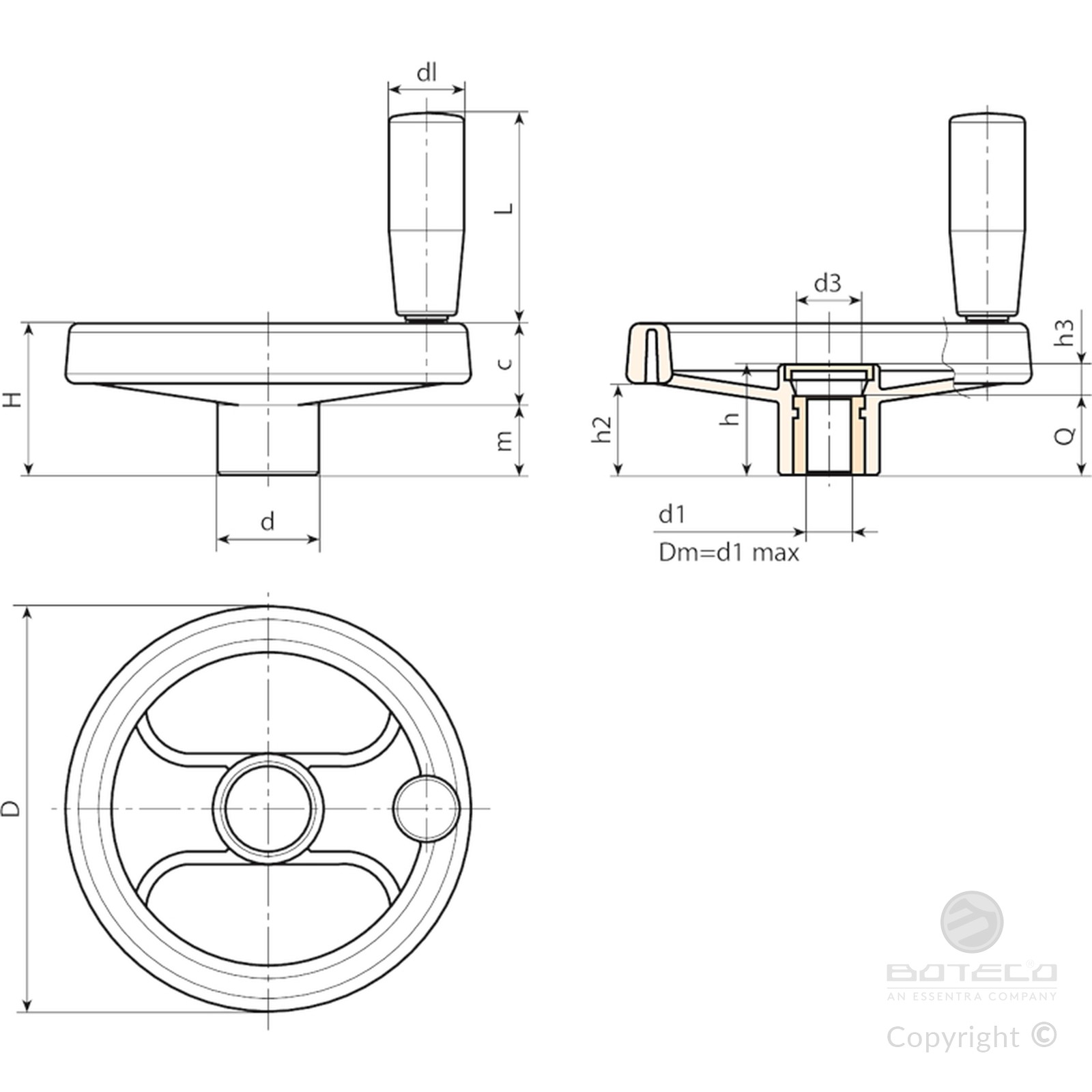

| Code | Art. | D | H | h | d | m | c | h2 | h3 | d3 | dl | L | Dm | d1 H10 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D210080.0002 | D210080.TP0501P | 80 | 34 | 26 | 24,5 | 15,5 | 18,5 | 20 | 6 | 16,5 | 20 | 52 | 12 | 5 | 20 | 130 |
| D210100.0002 | D210100.TP0501P | 100 | 43 | 33 | 28,5 | 20,5 | 22,5 | 26,5 | 9 | 16,5 | 20 | 52 | 16 | 5 | 24 | 185 |
| D210130.0001 | D210130.TD0501P | 129 | 50 | 35,5 | 32 | 20 | 30 | 30 | 11,5 | 25,5 | 23,5 | 62,5 | 18 | 5 | 24 | 280 |
| D210160.0001 | D210160.TD0801P | 160 | 57,5 | 41 | 40 | 20 | 37,5 | 34 | 9 | 26 | 25 | 72 | 22 | 8 | 32 | 455 |
| D210200.0001 | D210200.TD0801P | 198 | 60,5 | 38,5 | 51 | 16,5 | 44 | 31,5 | 7,5 | 27 | 25 | 72 | 22 | 8 | 32 | 700 |
| D210250.0001 | D210250.TD0801P | 252 | 70 | 48 | 56 | 23 | 47 | 38.5 | 12 | 31,5 | 26 | 81,5 | 28 | 8 | 36 | 1050 |
| D210350.0001 | D210350.TD0801P | 349 | 78 | 49 | 67 | 2 | 57 | 42 | 17 | 34 | 28 | 89,5 | 30 | (*) 8 | 32 | 1600 |
