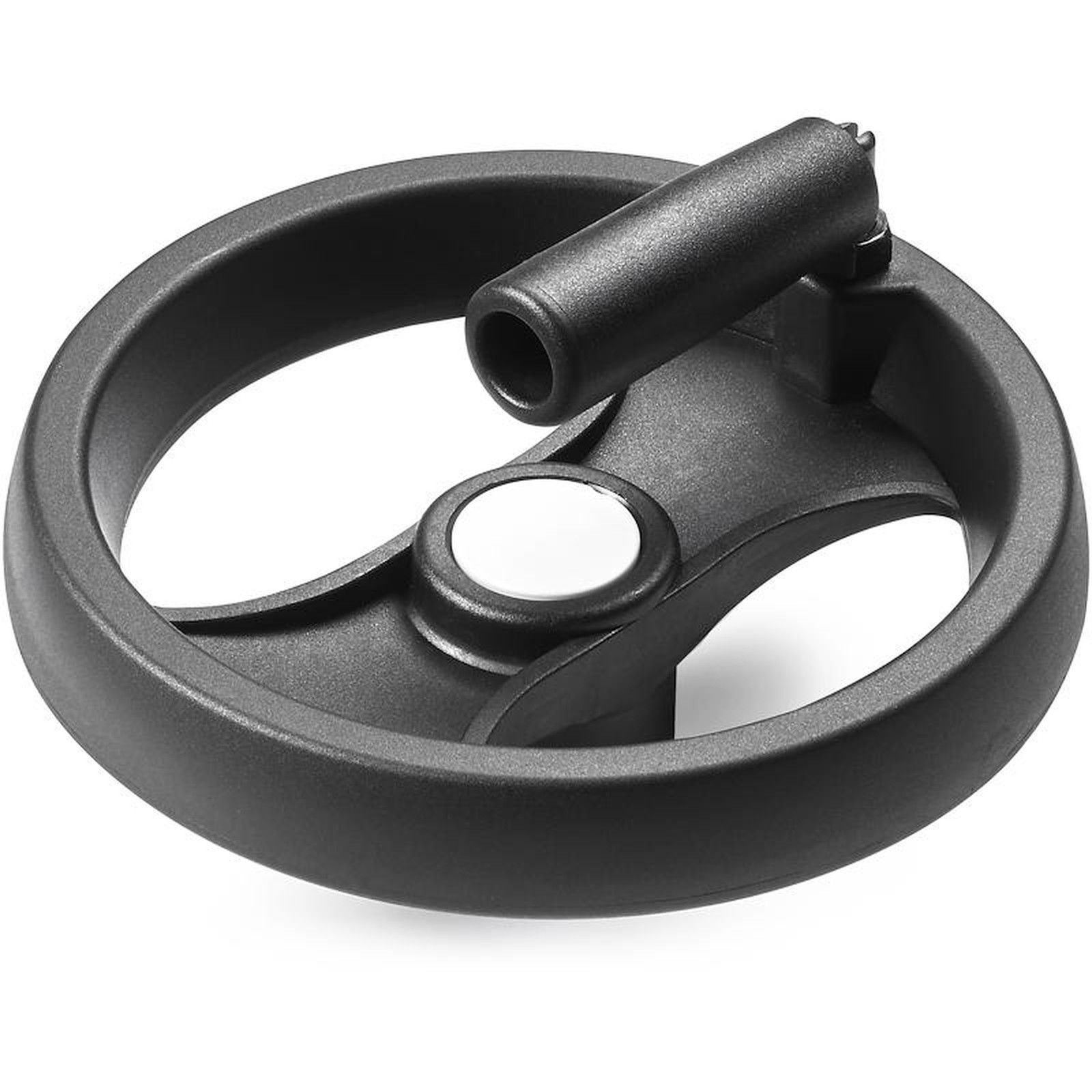

TWO-SPOKE CONTROL HANDWHEEL WITH REVOLVING FOLDING HANDLE
D208
Volantini a razze
Materials:
Reinforced and stabilized polyamide. Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Central cap:
Grey polyamide (RAL 7035). 13).
Alternative cap colours:
Orange(RAL 2004 code 02).
Blue(RAL 5015 code 07).
Yellow(RAL 1021 code 10).
Red(RAL 3000 code 16).
Green(RAL 6024 code 17).
Black(RAL 9011 code 01).
Main insert:
Galvanised steel insert with smooth through bore (tolerance H10).
Lateral insert:
Brass insert with threaded through hole.
(+) Hexagonal black-oxide treated steel insert with threaded through hole. Fixed with black-oxide treated hexagon socket button head screw ISO 7838.
Lateral handle:
Revolving, folding handle art. M136.
Hub:
Solid Hub.
(*) Lightweight hub.
Fixing method:
For fixing systems, or execution of keyways or square holes, please refer to the technical notes attached to the catalogue.
Special requests:
On request and with a minimum of 50 pieces, the inserts can be supplied with the hole d1 with H7 tolerance and black-oxide finish.
Upon request and for special quantities inserts can be supplied with custom hole diameter d1.
Upon request and for special quantities inserts can be supplied in different materials/with different coatings.
Upon request and for special quantities spoke handwheels, handles and caps are available in the colours indicated in the chart (reduced range).

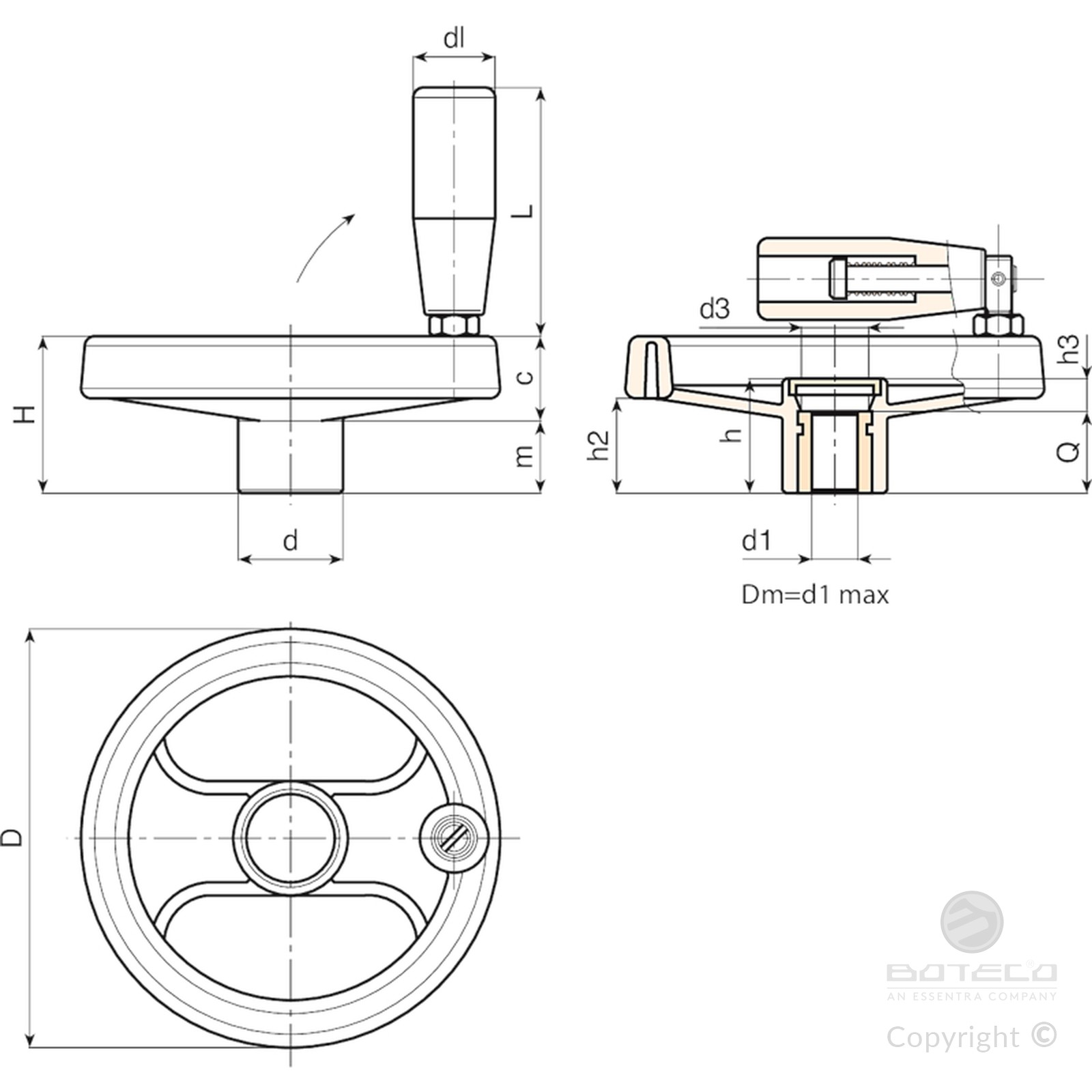

| Code | Art. | D | H | h | d | m | c | h2 | h3 | d3 | dl | L | Dm | d1 H10 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D208080.0008 | D208080.TP0501P | 80 | 34 | 26 | 24.5 | 15,5 | 18,5 | 20 | 6 | 16,5 | 19,5 | 55 | 12 | 5 | 20 | 135 |
| D208080.0003 | D208080.TD0801P | 80 | 34 | 26 | 24.5 | 15,5 | 18,5 | 20 | 6 | 16,5 | 19,5 | 55 | 12 | 8 | 20 | 132 |
| D208080.0005 | D208080.TD1001P | 80 | 34 | 26 | 24.5 | 15,5 | 18,5 | 20 | 6 | 16,5 | 19,5 | 55 | 12 | 10 | 20 | 129 |
| D208100.0010 | D208100.TP0501P | 100 | 43 | 33 | 28,5 | 20,5 | 22,5 | 26,5 | 9 | 16,5 | 19,5 | 55 | 16 | 5 | 24 | 192 |
| D208100.0001 | D208100.TD0801P | 100 | 43 | 33 | 28,5 | 20,5 | 22,5 | 26,5 | 9 | 16,5 | 19,5 | 55 | 16 | 8 | 24 | 189 |
| D208100.0003 | D208100.TD1001P | 100 | 43 | 33 | 28,5 | 20,5 | 22,5 | 26,5 | 9 | 16,5 | 19,5 | 55 | 16 | 10 | 24 | 186 |
| D208100.0004 | D208100.TD1201P | 100 | 43 | 33 | 28,5 | 20,5 | 22,5 | 26,5 | 9 | 16,5 | 19,5 | 55 | 16 | 12 | 24 | 183 |
| D208130.0011 | D208130.TP0501P | 129 | 50 | 36 | 32 | 21 | 29 | 32 | 12 | 26 | 25 | 76 | 18 | 5 | 24 | 311 |
| D208130.0002 | D208130.TD0801P | 129 | 50 | 36 | 32 | 21 | 29 | 32 | 12 | 26 | 25 | 76 | 18 | 8 | 24 | 308 |
| D208130.0003 | D208130.TD1001P | 129 | 50 | 36 | 32 | 21 | 29 | 32 | 12 | 26 | 25 | 76 | 18 | 10 | 24 | 305 |
| D208130.0004 | D208130.TD1201P | 129 | 50 | 36 | 32 | 21 | 29 | 32 | 12 | 26 | 25 | 76 | 18 | 12 | 24 | 302 |
| D208160.0001 | D208160.TD0801P | 159 | 57 | 40.5 | 40 | 22 | 35 | 34 | 8.5 | 26 | 25 | 76 | 22 | 8 | 32 | 460 |
| D208160.0006 | D208160.TD1401P | 159 | 57 | 40.5 | 40 | 22 | 35 | 34 | 8.5 | 26 | 25 | 76 | 22 | 14 | 32 | 452 |
| D208160.0010 | D208160.TD2001P | 159 | 57 | 40.5 | 40 | 22 | 35 | 34 | 8.5 | 26 | 25 | 76 | 22 | 20 | 32 | 448 |
| D208200.0001 | D208200.TD0801P | 198 | 60,5 | 38,5 | 51 | 16,5 | 44 | 31,5 | 7.5 | 26 | 25 | 76 | 22 | (*) 8 | 32 | 704 |
| D208200.0003 | D208200.TD1601P | 198 | 60,5 | 38,5 | 51 | 16,5 | 44 | 31,5 | 7.5 | 26 | 25 | 76 | 22 | (*) 16 | 32 | 694 |
| D208200.0008 | D208200.TD2001P | 198 | 60,5 | 38,5 | 51 | 16,5 | 44 | 31,5 | 7.5 | 26 | 25 | 76 | 22 | (*) 20 | 32 | 689 |
| D208250.0002 | D208250.TD0801P | 252 | 70 | 48 | 56 | 23 | 47 | 38,5 | 12 | 24 | 26 | 97 | 28 | (*) 8 | 36 | 1080 |
| D208250.0009 | D208250.TD2001P | 252 | 70 | 48 | 56 | 23 | 47 | 38,5 | 12 | 24 | 26 | 97 | 28 | (*) 20 | 36 | 1065 |
| D208350.0001 | D208350.TD0801P | 346 | 78 | 49 | 67.5 | 21 | 57 | 42 | 17 | 34 | 26 | 97 | 30 | (*)(+) 8 | 32 | 1690 |
