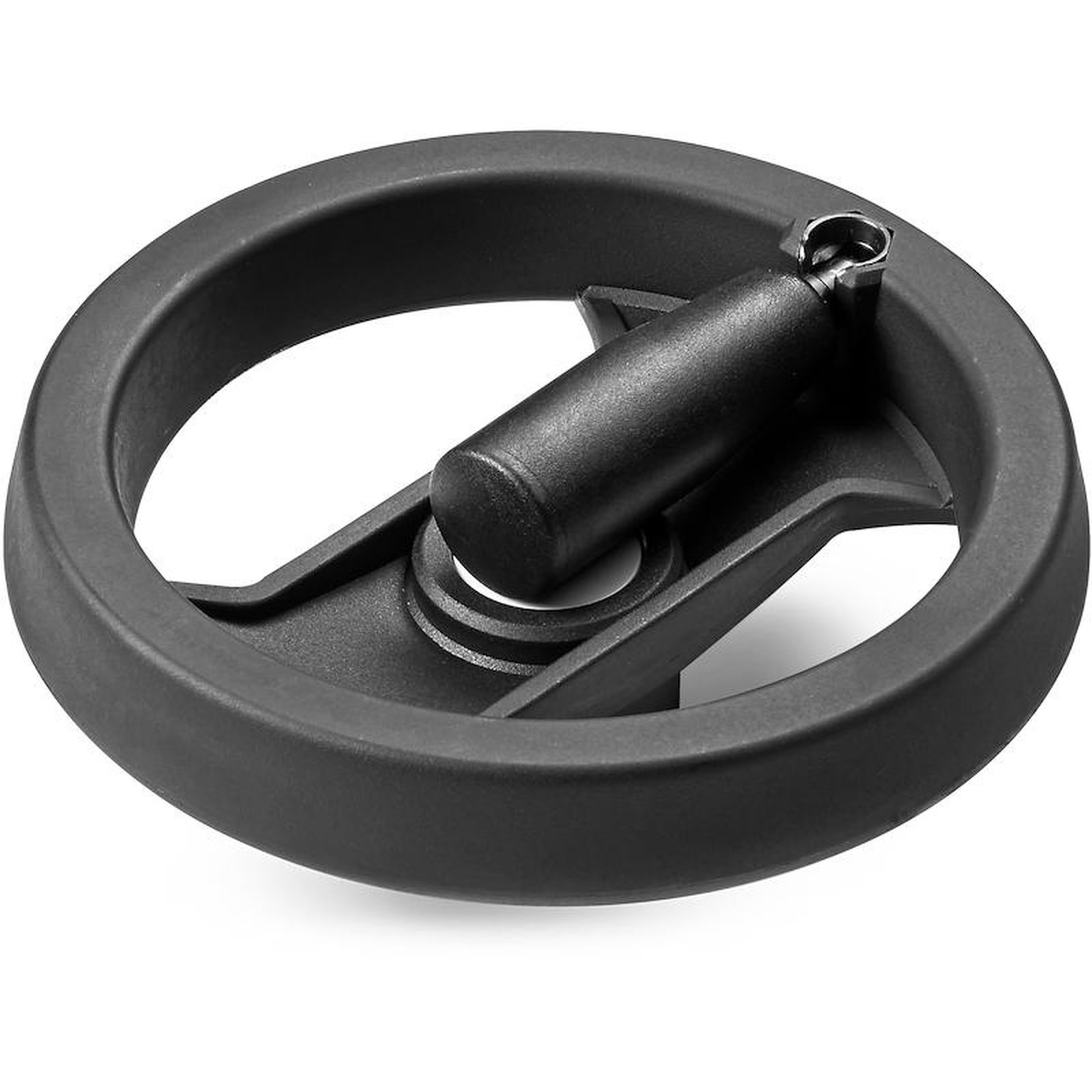

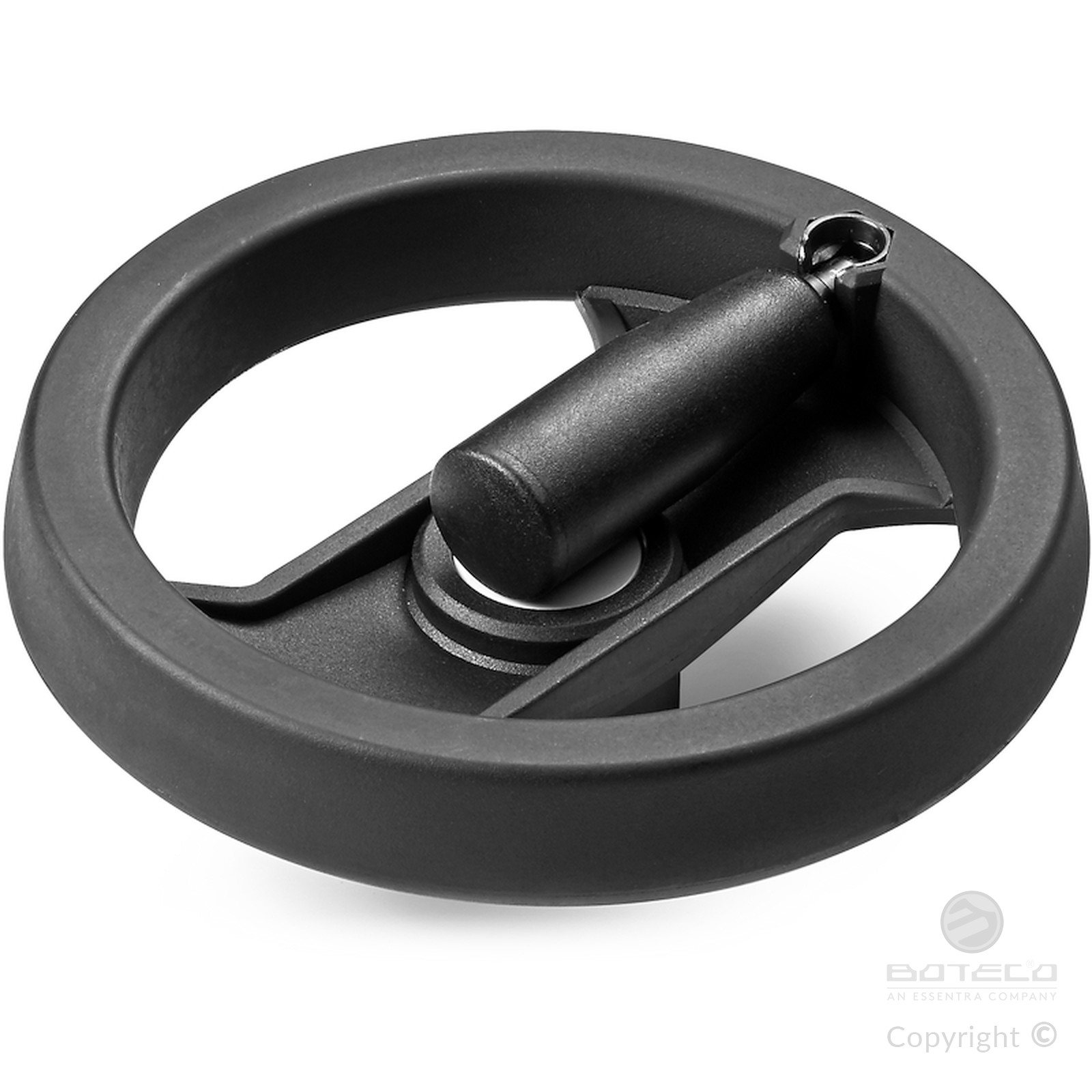

TWO-SPOKE CONTROL HANDWHEEL WITH REVOLVING FOLDAWAY HANDLE
D207
Volantini a razze
Materials:
Reinforced and stabilized polyamide. Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Central cap:
Grey polyamide (RAL 7035). 13).
Alternative cap colours:
Orange(RAL 2004 code 02).
Blue(RAL 5015 code 07).
Yellow(RAL 1021 code 10).
Red(RAL 3000 code 16).
Green(RAL 6024 code 17).
Black(RAL 9011 code 01).
Main insert:
Galvanised steel insert with smooth through bore (tolerance H10).
Lateral handle:
Flush, foldaway revolving handle, with hexagonal connection. Reinforced polyamide handle.
Black-oxide treated internal mechanism. Fixed with black-oxide treated hexagon socket button head screw ISO 7838.
Hub:
Solid Hub.
Fixing method:
For fixing systems, or execution of keyways or square holes, please refer to the technical notes attached to the catalogue.
Special requests:
On request and with a minimum of 50 pieces, the inserts can be supplied with the hole d1 with H7 tolerance and black-oxide finish.
Upon request and for special quantities inserts can be supplied with custom hole diameter d1.
Upon request and for special quantities inserts can be supplied in different materials/with different coatings.
Upon request and for special quantities spoke handwheels, handles and caps are available in the colours indicated in the chart (reduced range).

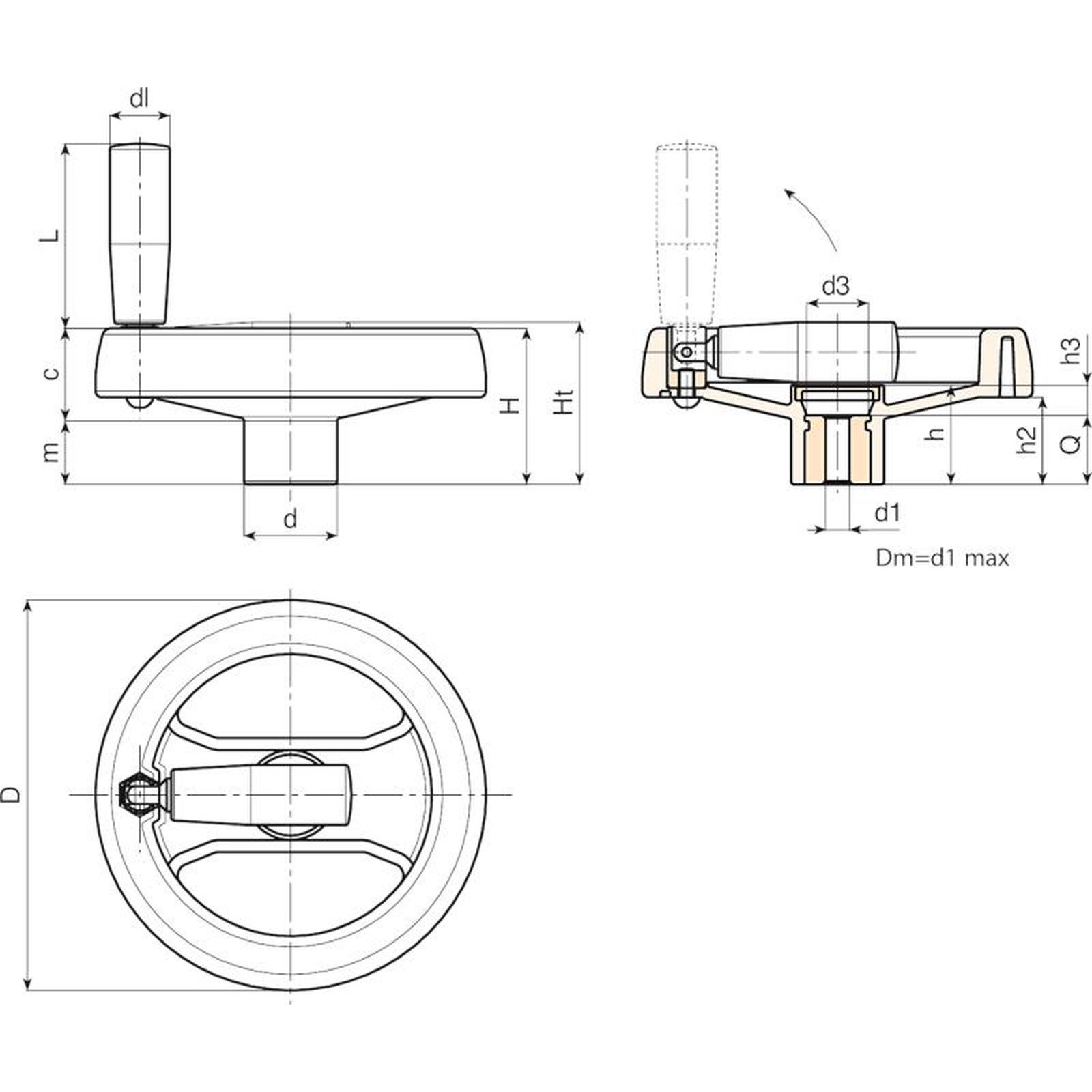

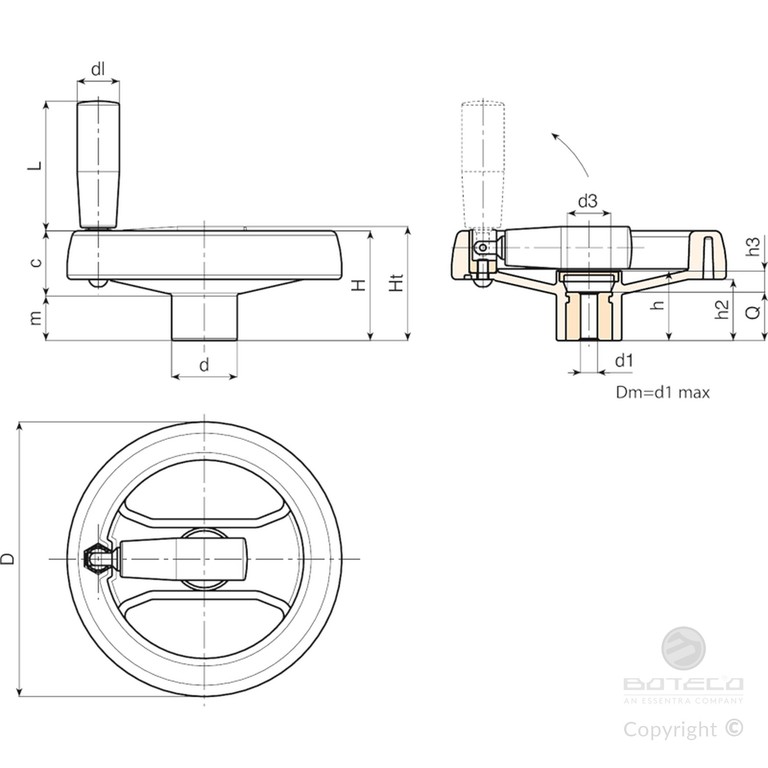

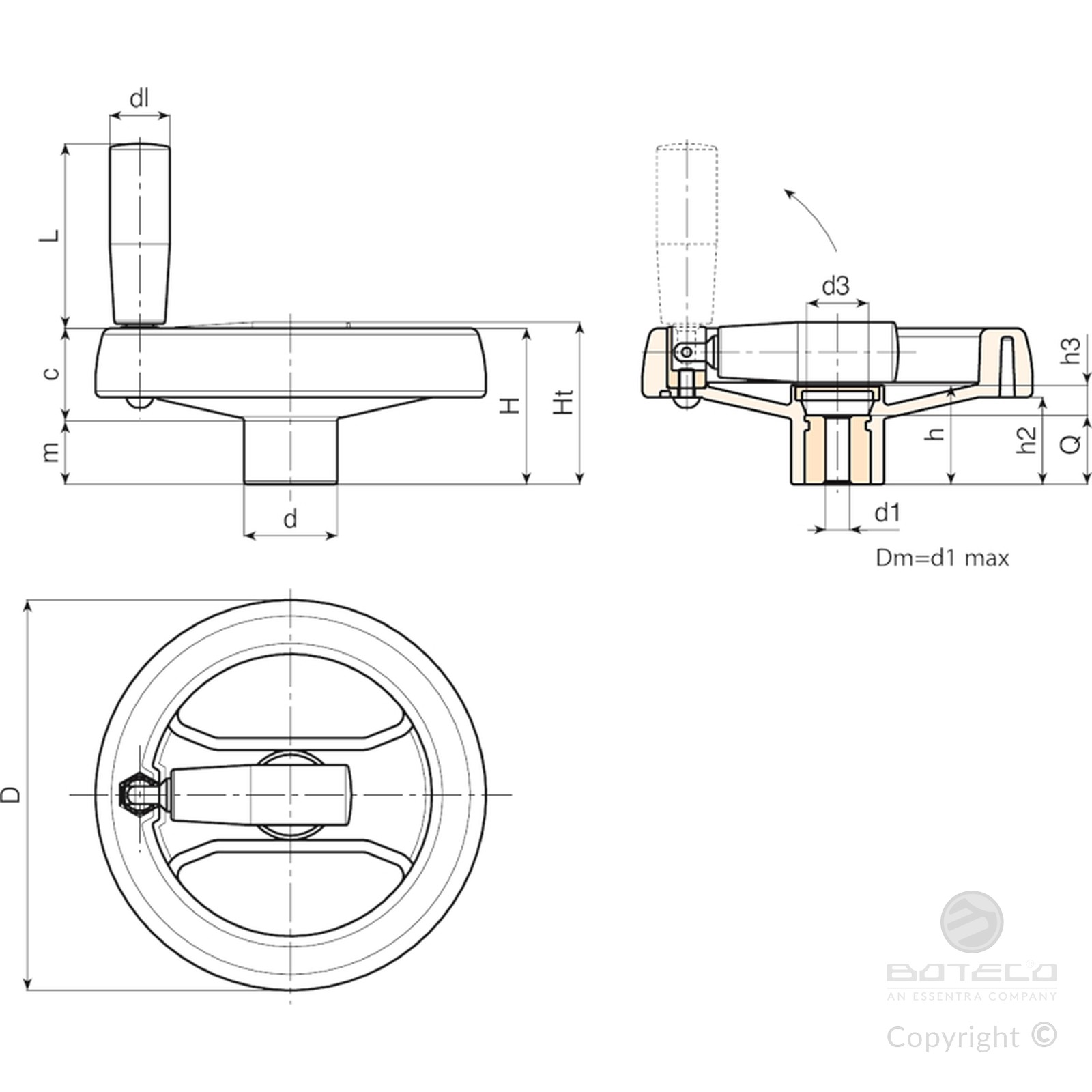

| Code | Art. | D | H | Ht | h | d | m | c | h2 | h3 | d3 | dl | L | Dm | d1 H10 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D207130.0001 | D207130.TD0501P | 129 | 53 | 55 | 32 | 32 | 22 | 31 | 30 | 12 | 26 | 20 | 58 | 18 | 5 | 20 | 300 |
| D207130.0004 | D207130.TD0801P | 129 | 53 | 55 | 32 | 32 | 22 | 31 | 30 | 12 | 26 | 20 | 58 | 18 | 8 | 20 | 297 |
| D207130.0016 | D207130.TD1201P | 129 | 53 | 55 | 32 | 32 | 22 | 31 | 30 | 12 | 26 | 20 | 58 | 18 | 12 | 20 | 294 |
| D207160.0024 | D207160.TD0501P | 159 | 55 | 59 | 33.5 | 40 | 20.5 | 34.5 | 31 | 9.5 | 26 | 25 | 71 | 22 | 5 | 24 | 450 |
| D207160.0001 | D207160.TD0801P | 159 | 55 | 59 | 33.5 | 40 | 20.5 | 34.5 | 31 | 9.5 | 26 | 25 | 71 | 22 | 8 | 24 | 447 |
| D207160.0006 | D207160.TD1201P | 159 | 55 | 59 | 33.5 | 40 | 20.5 | 34.5 | 31 | 9.5 | 26 | 25 | 71 | 22 | 12 | 24 | 443 |
| D207160.0010 | D207160.TD1401P | 159 | 55 | 59 | 33.5 | 40 | 20.5 | 34.5 | 31 | 9.5 | 26 | 25 | 71 | 22 | 14 | 24 | 440 |
| D207160.0014 | D207160.TD1601P | 159 | 55 | 59 | 33.5 | 40 | 20.5 | 34.5 | 31 | 9.5 | 26 | 25 | 71 | 22 | 16 | 24 | 436 |
| D207350.0001 | D207350.TD0801P | 346 | 78 | 86 | 49 | 67.5 | 24 | 57 | 42 | 17 | 34 | 40 | 64 | 30 | 8 | 32 | 1650 |
